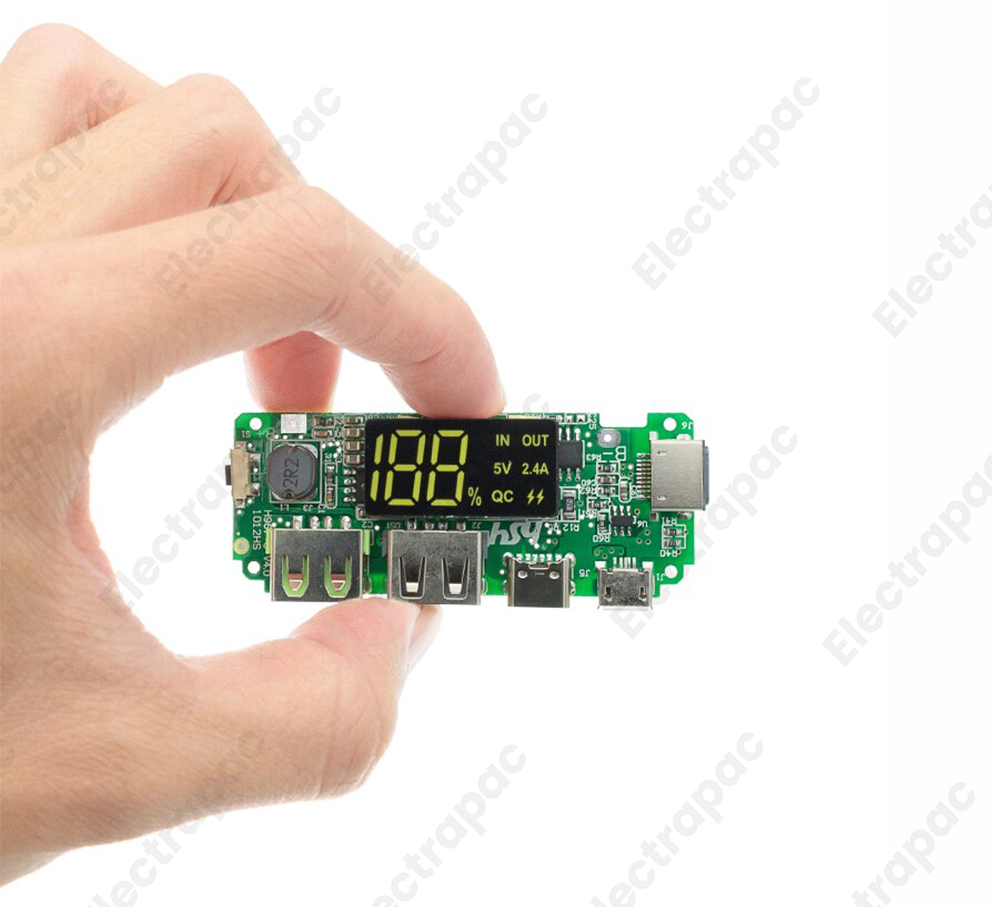

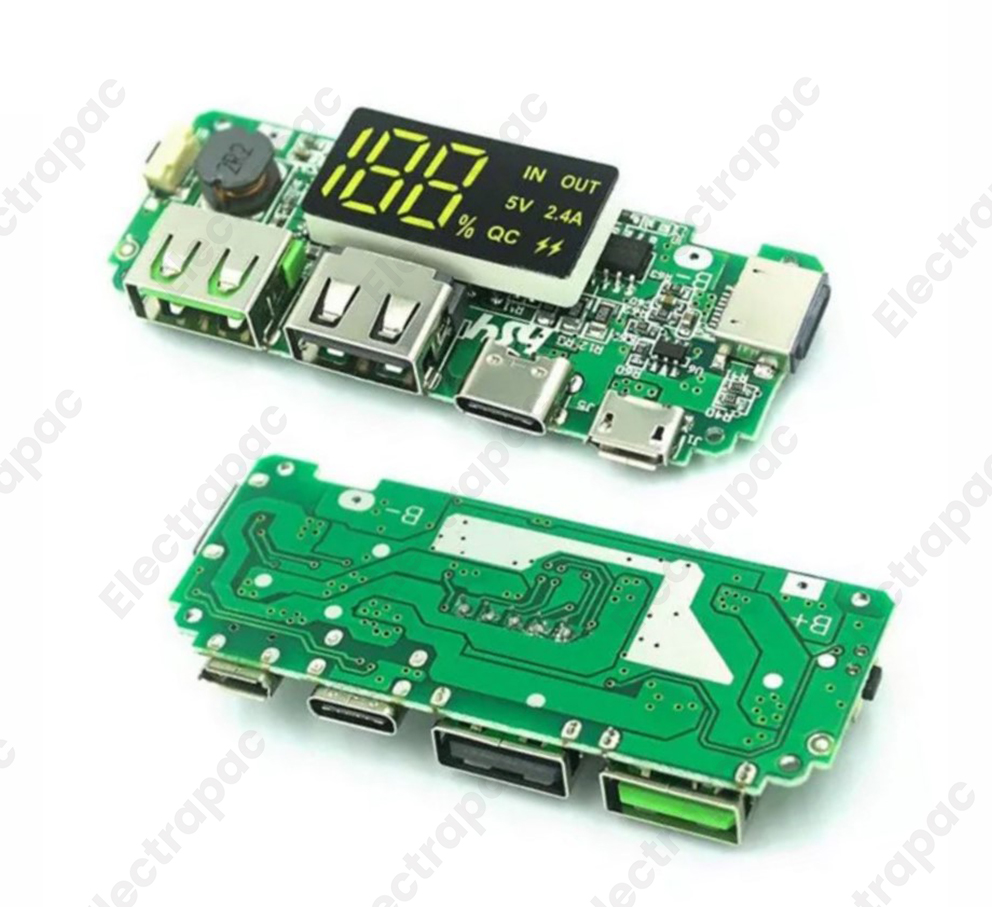

LED Dual USB 5V 2.4A Micro Type-C USB Power Bank 18650 Charging Module Lithium Battery Charger Board Circuit Protection

Ratings 0

৳0

৳212

Brand : Non_Brand

Color Family

Blue
Green

Size Int:

Small

Stock Quantity:

10

Portable Mobile Power Supply Module. Supports 3 USB cables. Hold down the button after standby, LED digital display power supply. LED digital screen shows current battery power when charging. When discharging, the LED digital screen displays the current power, and the display saves about 30 seconds (double-click button to restore the display). After charging and discharging, the system will provide accurate battery instructions.

Features:

  1. LED Indicator Display:
    • The LED digital screen displays the current battery charge while charging.
    • When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).
    • The system will provide an accurate battery indication after a complete charge and discharge.
  2. Prevent Overcharge Protection:
    • Detection voltage: 4.20plus-minus0.05V
    • Release voltage: 4.100plus-minus0.05V
    • Detection delay time: Less than200 ms
  3. Prevent Over discharge Protection:
    • Detection voltage: 3.0plus-minus0.10V
    • Release voltage: 3.10plus-minus0.10V
    • Detection delay time: Less than100 ms
  4. Short Circuit Protection:
    • Short detection delay time: Less than50 microsecond
    • Release Conditions: Cut off load
  5. Normal Current Consumption:
    • Normal current consumption of PCM: Max 60 microamp
    • Standby current consumption: Max 50 microamp
  6. Suggest Working Conditions:
    • Max continuous charge/discharge current: 1.5/2.4A
    • Suggest working temperature: -5-45Celsius
    • Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
    • This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery.
    • Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.

Specifications:

  • Size: 6.5 * 2.5cm
  • IR of PCM : Less than or equal to65 momega
  • Allowed 0V change: Yes
  • Constant current: 2.4A
  • Dual output current: 5V 2.4A
  • Input voltage B+ to B-: 3.0 – 4.2V
  • Charging cable: support three type of USB Cables for iPhone Lightning & Android Type-C Micro USB

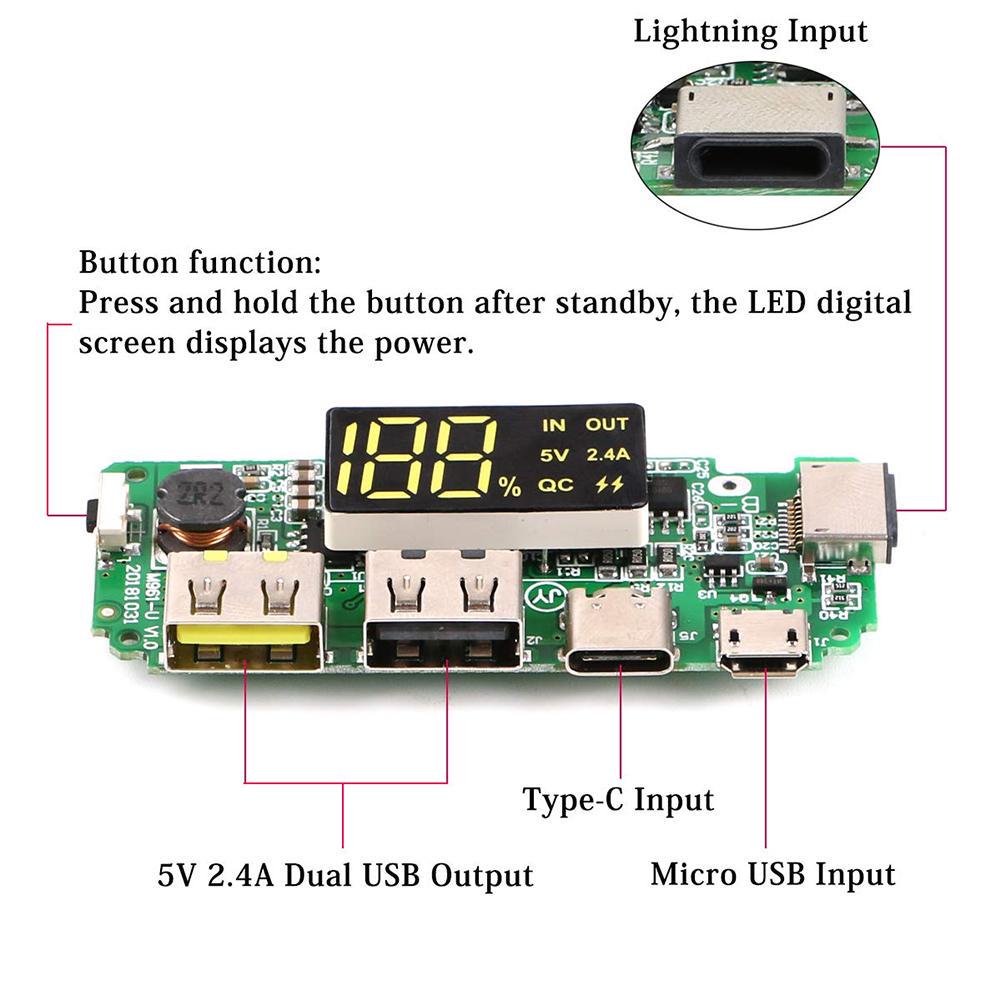

  • Button function: Press and hold the button after standby, the LED digital screen displays the power
