Electrapac

30A Brushless ESC Motor Speed Controller/ 30A BLDC Drone Motor Speed Controller

Ratings 0

~~৳700~~

৳557

Brand : Non_Brand

Color Family

Multi Color

Size Int:

Small

Stock Quantity:

Description:

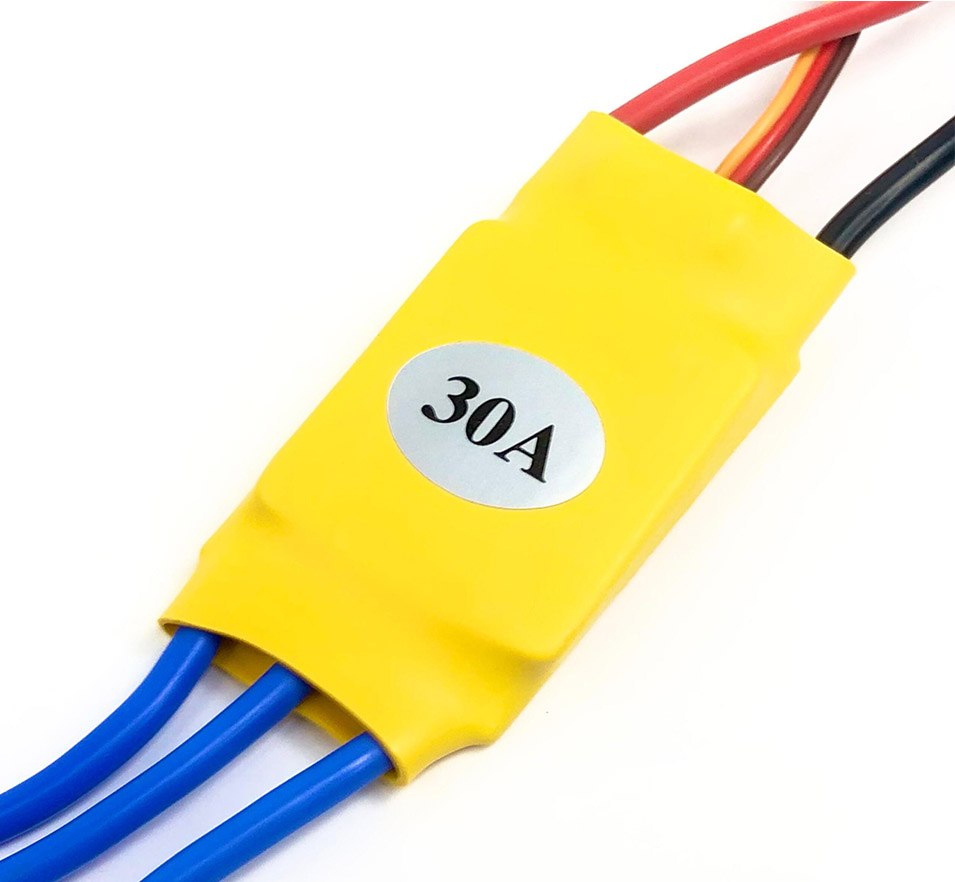

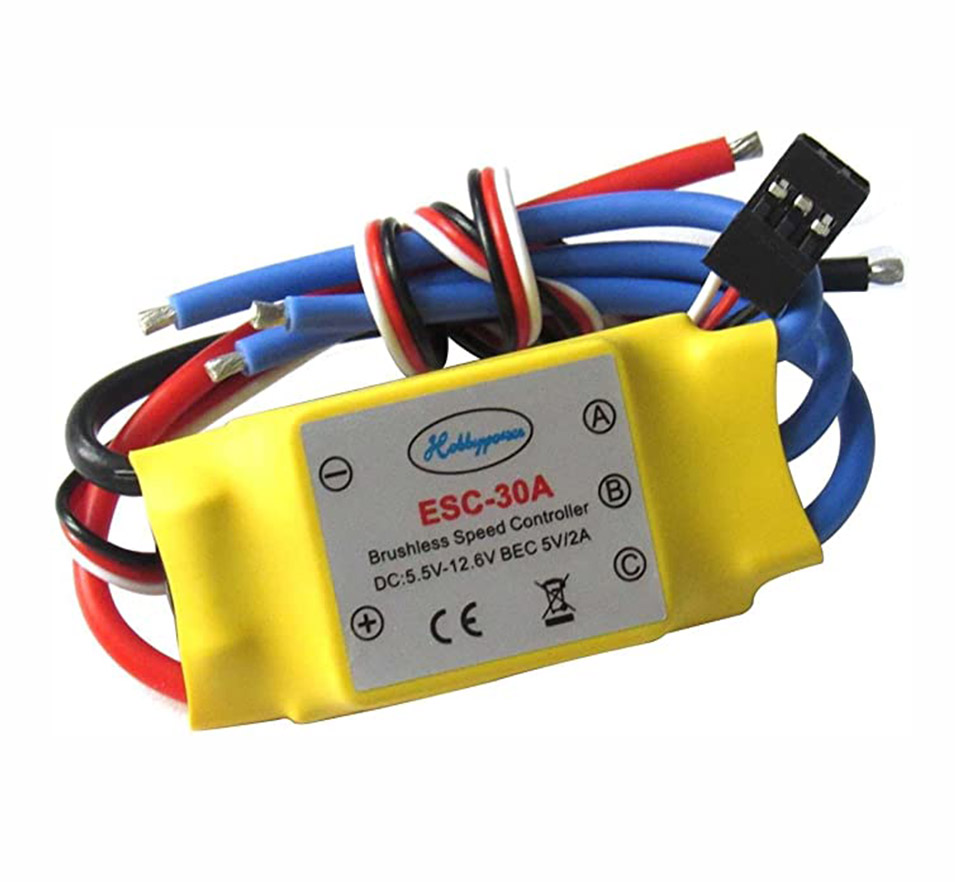

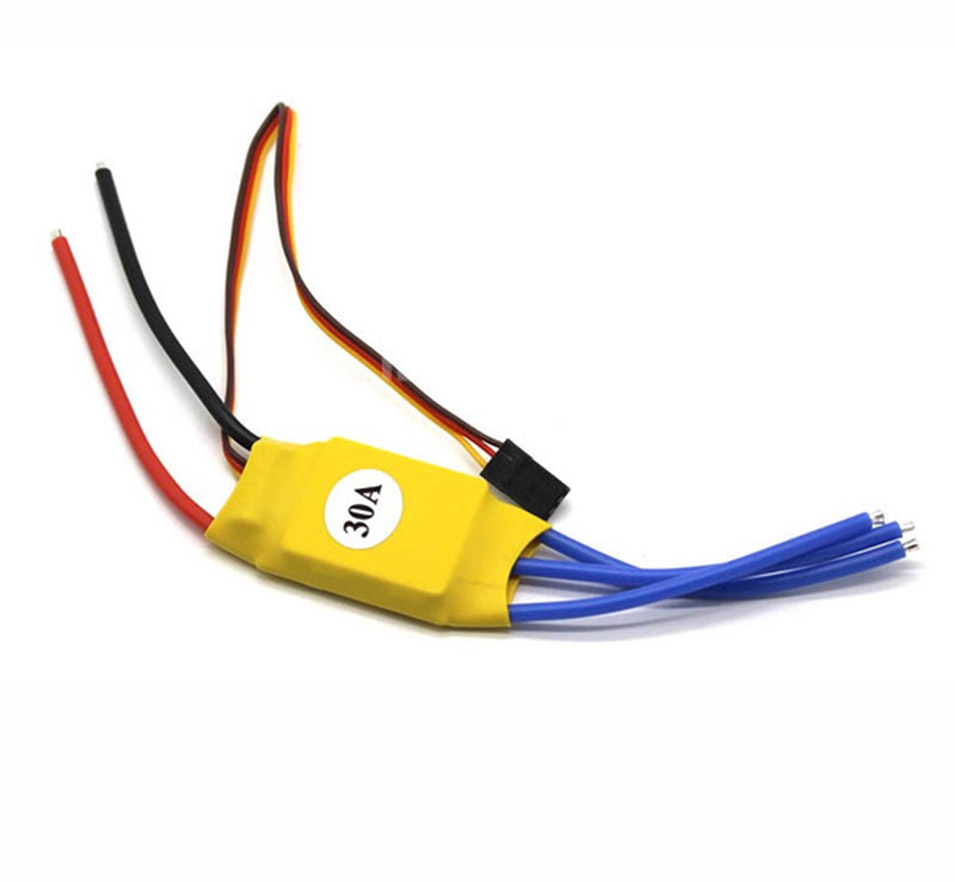

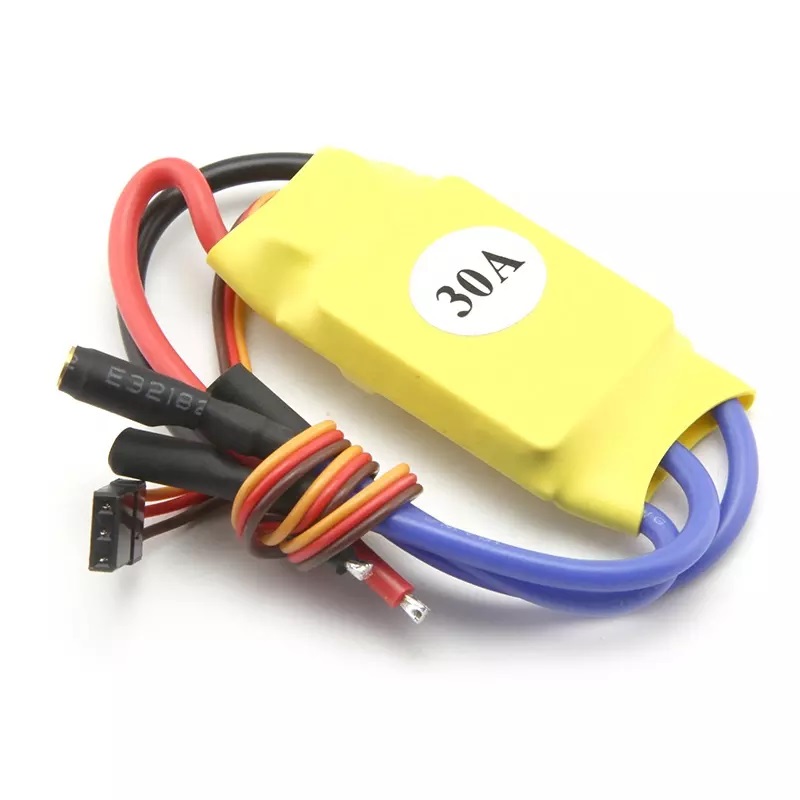

This 30A Brushless ESC is designed for high-performance RC applications, delivering up to 45A instant and 30A continuous current. It supports a wide voltage range and includes a 5V 3A BEC. Compact yet powerful, this ESC features automatic protection functions such as overheating and signal loss to ensure safe and efficient operation of your brushless motors.

Supports up to 45A burst current and 30A continuous
Compact size: 45 x 24 x 8mm
Wide voltage range: 4V to 16V
Built-in 5V 3A BEC for receiver and servo power

Specifications:

Instant Current: 45A
Continuous Current: 30A (40A for 10 seconds)
Voltage Range: 4V–16V
Battery Compatibility: 4–12 NIMH or 2–3 LIPO (no BEC support for 4S LIPO)
BEC Output: 5V 3A
Size: 45 x 24 x 8mm
Protection Features: Automatic selection, over-temperature protection, out-of-control signal protection

Package:

1 x 30A Brushless ESC

FAQ:

Q1: Can this ESC handle 4S LIPO batteries?
A: It can, but the BEC should not be used with 4S LIPO.

Q2: What is the peak current capacity?
A: It can handle up to 45A peak current.

Q3: Is it suitable for drones and RC planes?
A: Yes, it’s ideal for brushless RC applications like planes and multirotors.

Q4: Does it have built-in safety features?
A: Yes, it includes temperature and signal loss protection.

Q5: What are the BEC output specs?
A: 5V at 3A output.
