Electrapac

L293D Motor Driver Shield For RC Project- Stepper/Servo Motor Control Shield with Arduino

Ratings 0

~~৳250~~

৳207

Brand : 5

Color Family

Multi Color

Size Int:

6

Stock Quantity:

10

Description:

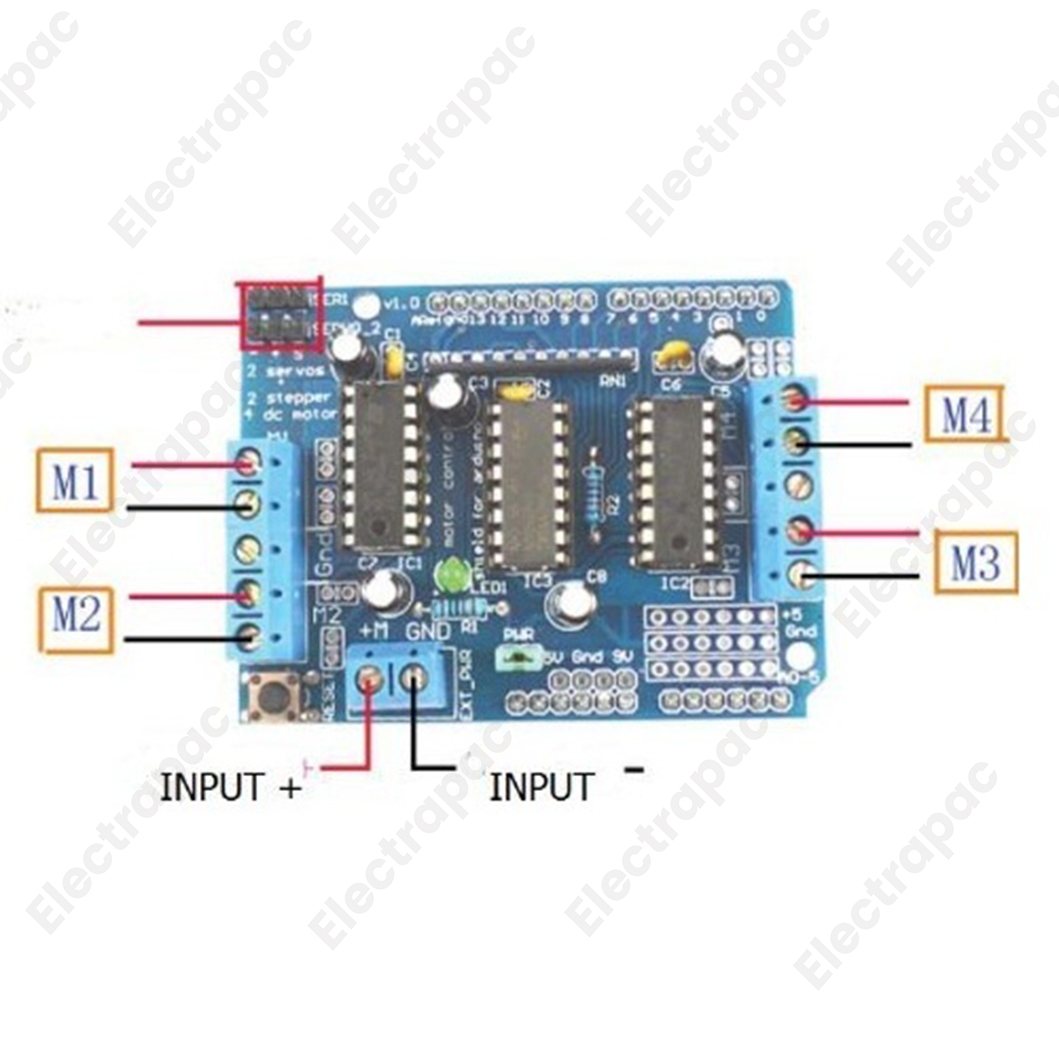

The L293D Motor Shield for Arduino allows you to control motors for your Arduino projects. It features a monolithic integrated, high voltage, high current, 4-channel driver, enabling you to drive DC motors and stepper motors up to 36V with a maximum current of 600mA per channel. This motor shield provides a high-performance H-Bridge configuration, which allows voltage to be applied across a load in either direction, making it perfect for driving motors. It also includes thermal protection and reset capabilities, ensuring the safety of your components.

Specifications:

Driver Type: Monolithic integrated, high voltage, high current, 4-channel driver.
Voltage Range: 4.5V to 36V for motors, 5V for logic control.
Current per Channel: 600mA (1.2A peak current).
Motor Types: DC motors, stepper motors, servos.
Number of Motors: Up to 4 DC motors or 2 stepper motors.
Speed Control: 8-bit individual speed selection for DC motors.
Thermal Protection: Yes.
Power Interface: 2 external terminals for separate logic/motor supplies.
Size: 6.8cm x 5.5cm x 2cm (2.68in x 2.17in x 0.79in).

Package:

1 x L293D Motor Shield for Arduino
