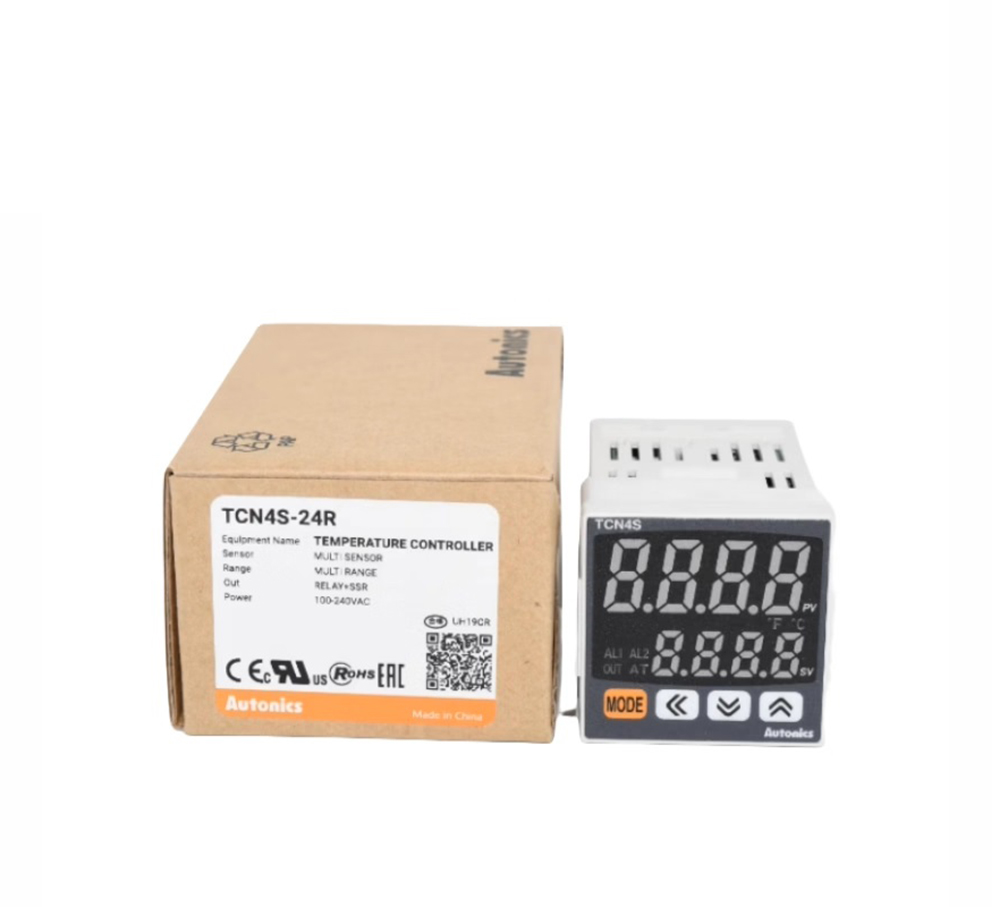

Autonics Temperature Controller Autonics TCN4S-24R/ Autonics Temperature Controller

Ratings 0

~~৳3500~~

৳2888

Brand : Autonics

Color Family

Multi Color

Size Int:

Medium

Stock Quantity:

Full Specification

Item	Incubator Temperature Controller
Model	✅ Autonics TCN4S-24R

Display method
- 4 x digit
- 7 x segment LED
Sensor: Multi-sensor
Range: Multi-range
Out: Relay, SSR
Power supply: 100 - 240V, AC - 50 / 60Hz
Control method: ON / OFF, P, PI, PD, PID
Input
- Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
- RTD: DPt100Ω, Cu50Ω
Sampling cycle: 100ms
Control output: Relay, 250VAC, 3A or SSR drive, 12V, DC
Option output: Alarm 1 / 2
Display accuracy
- At room temperature: 23ºC - 5ºC):(PV ± 0.5 or - 1ºC, select the higher one - 1-digit
- Out of room temperature range:(PV - 0.5 or - 2ºC, select the higher one) - 1-digit
Display accuracy Thermocouple
- At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one- 1-digit
- Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one) - 1-digit
Hysteresis adjustable sensitivity: 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band: 0.1 to 999.9℃/℉
Integral time: 0 to 9999 sec
Derivative time: 0 to 9999 sec
Control period: 0.5 to 120.0 sec
Manual reset: 0.0 to 100.0%
Environment Ambient
- Temperature: -10 to 50℃, storage: -20 to 60℃
- Humidity: 35 to 85 RH, storage: 35 to 85 RH
Made in China
Weight 147g

Description

This Autonics TCN4S-24R temperature controller is used to detect the measured temperature and output to maintain the desired temperature by comparing a sensor signal with the set point as well as calculates according to the deviation and can control heaters or other equipment. It maintains the temperature as well as expresses the output.
