XH-M452 Thermostat Digital Temperature & Humidity Controller for incubator DC 12v

Ratings 0

~~৳700~~

৳525

Brand : Non_Brand

Color Family

Blue

Green

Size Int:

Medium

Stock Quantity:

Description: XH-M452 Digital Temperature & Humidity Controller

XH-M452 M452 Thermostat Temperature Humidity Control Thermometers Hygr-ometer Controller Module DC 12V LED Digital Display Dual Output Incubator Temperature Sensor NTC Probe & Dual Relay

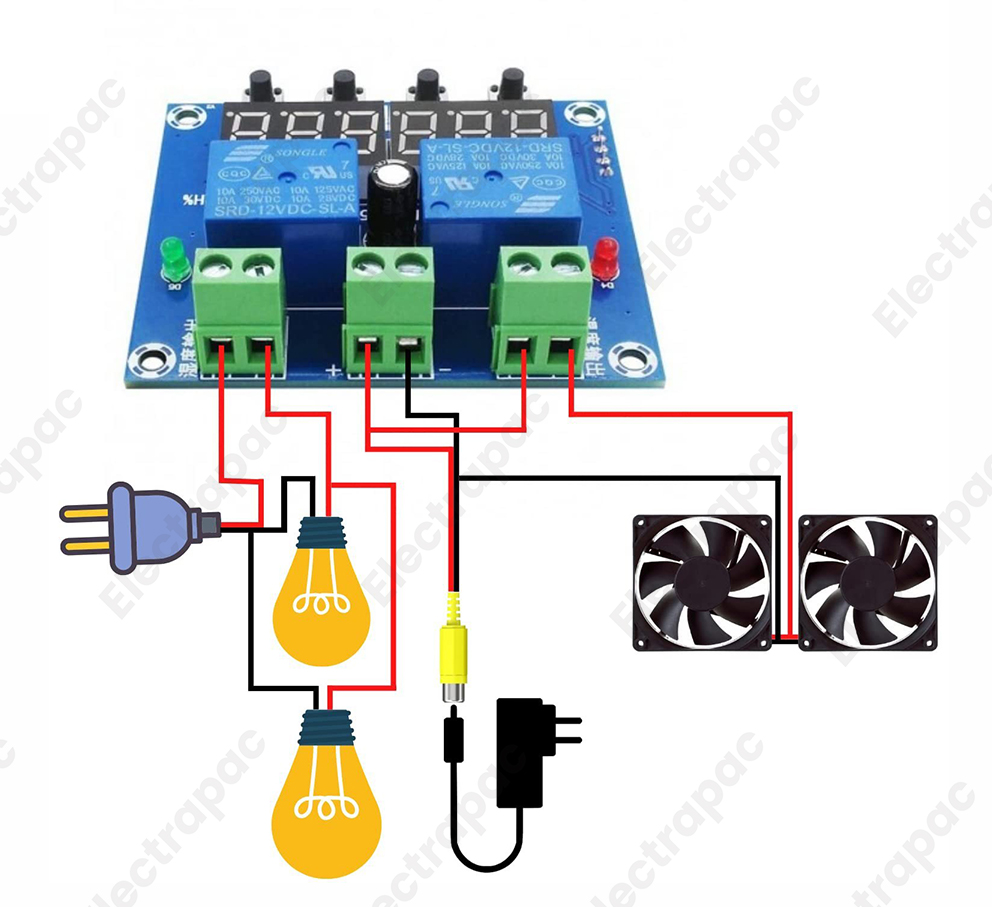

Digital Temperature and Humidity 12VDC Controller is capable of maintaining humidity and temperature. The module works at 12VDC power. The module has separate 220VAC 10A Relay outputs for Heater and Humidity Generator (External Fan, and Humidifier).

Application scenario: control cabinet constant temperature and humidity control, incubation and breeding temperature control, printing plant.
The two relays are separately controlled, one way to control the temperature, another way to control the humidity.
If you do wrong operation ,it will return to detect temperature display automatically after 5 seconds .
Set the temperature – : Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key to set value.
Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888.

Specifications:

Model: XH-M452
Style: Exposed PCB
Display Type: Digital
Power Supply: DC 12V
Temperature Measurement Range: -40~120℃
Humidity Range：0~100%RH
Control Precision：0.1℃ 0.1%RH
Test Probe: Integrated Sensor
Test Probe Cable Length: ~90cm
Output: 10A delay

Temperature Control:

Set the temperature + ：Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, wrong operation after 5 seconds, automatically return to detect temperature display
Set the temperature – ：Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Set the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / – key
Set Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key

Humidity Control:

Set to start humidity: long press the + key, start the humidity value flashing, set by + / – key launch humidity value
Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Fault code: display LLL mean the sensor fault
Display HHH mean Test temperature exceed the range of measurement
