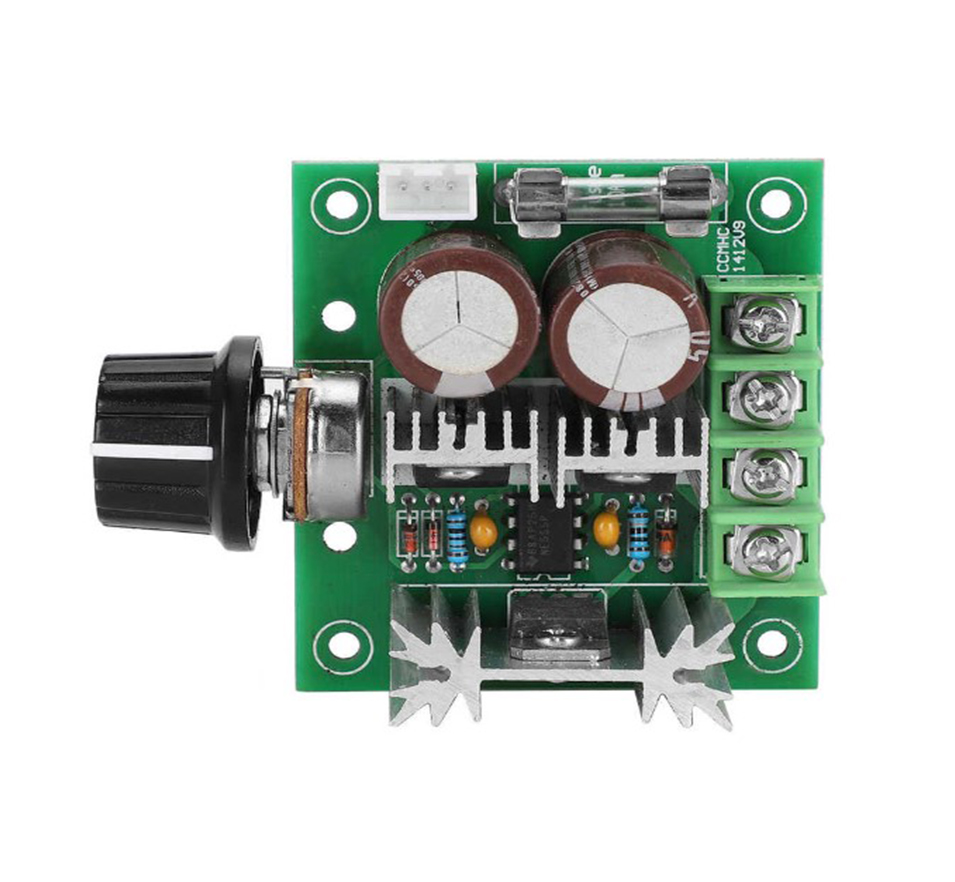

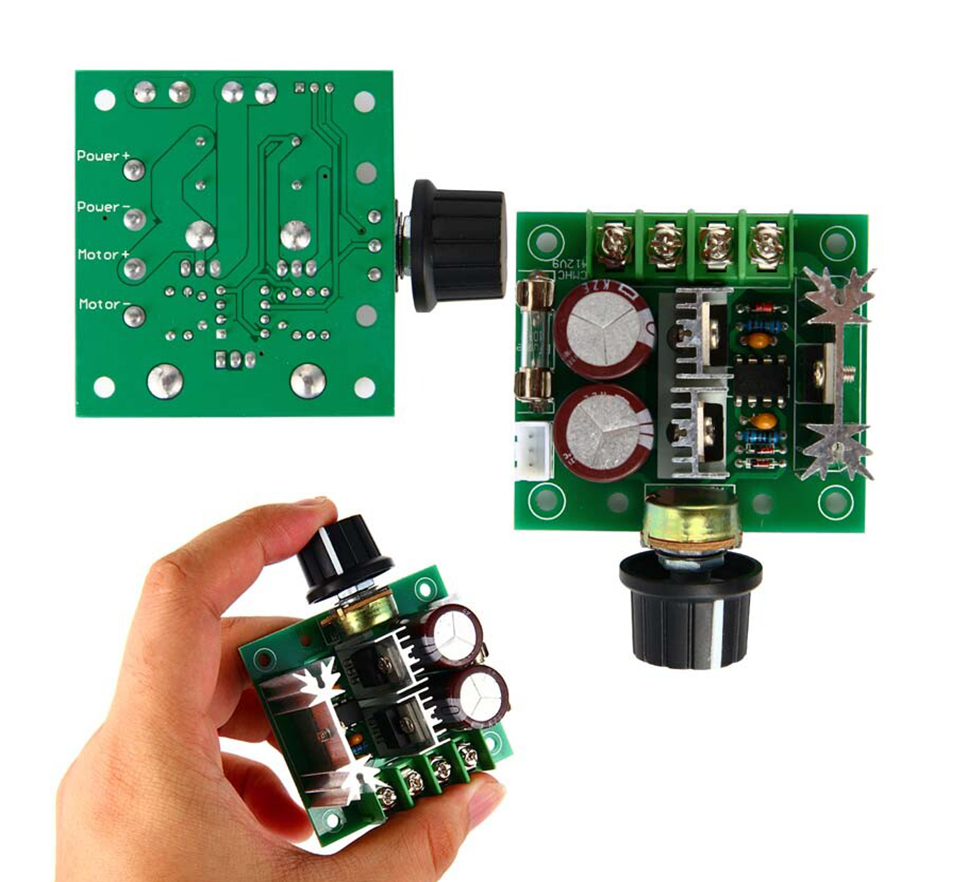

PWM 12-40V DC Motor Speed Controller Regulator DC 12V-40V 10A PWM DC Motor Adjustable Speed Control CVT Switches Craft Electronic PCB Board Module
0
Ratings 0
৳313
Brand : Non_Brand
Color Family
Size Int:
Stock Quantity:
Feature:
1. The controller can control speed, temperature and light.
2. Wide range of working voltage between DC12~40V.
3. The control mode is by pulse width modulation which will be not affected by noise.
4. Maximum control power of the motor control is up to 400W.
5. The speed regulation range is from 10~100%.
Specification:
Item Type: Motor Speed Controller
Working Voltage: DC12~40V
Rated Current: 8A
Maximum Current: 10A
Static Current: 0.02A(Standby Mode)
Control Power: 0.01~400W
Potentiometer: Resistance B100K,Hole 8mm
Regulation Range: 10~100%
PWM Frequency: 13KHz
Package List:
1 x DC 12V-40V 10A PWM DC Motor Adjustable Speed Control.
