Posmith Digital Voltage Protector/ 63A 220V Adjustable Voltage protector switch over and under voltage and over current

Ratings 0

৳0

৳1070

Brand : No Brand | More Audio from No Brand

Color Family

White

Size Int:

Medium

Stock Quantity:

8

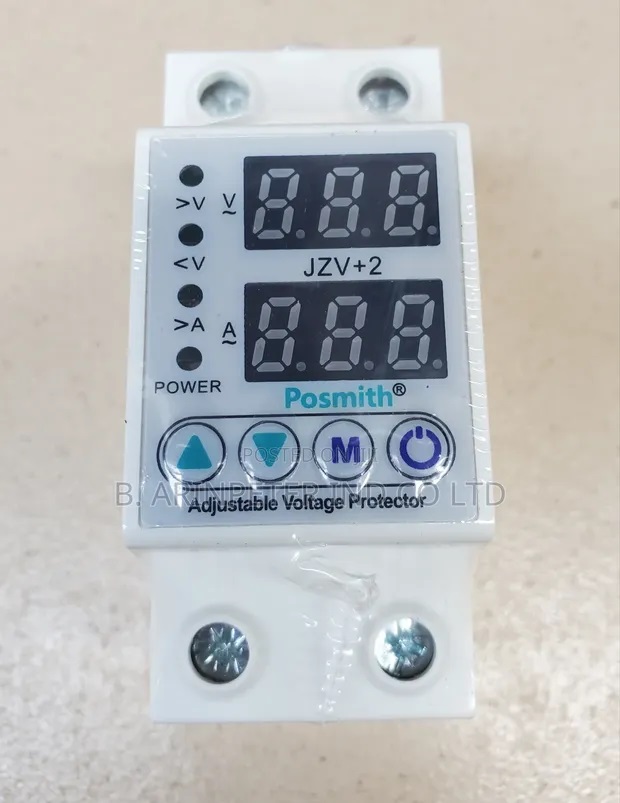

Posmith JZV+2 230V Din Rail Adjustable Voltage & Current Protector Relay – 60A (Over/Under Protection, Auto Recovery, Display)

The Posmith JZV+2 is a reliable and advanced voltage & current protection device designed to safeguard your electrical appliances from over-voltage, under-voltage, and over-current conditions. Featuring automatic recovery, real-time voltage display, and fault inquiry, this protector is ideal for homes, offices, and industries in Bangladesh.

Product Parameters:

  1. Over-voltage protection
  2. Under-voltage protection
  3. Over-current protection
  4. Automatic recovery
  5. Voltage display (real-time measurement)
  6. Fault inquiry: Press and hold the UP button for more than 12 seconds

Product Parameters:

  • Power Supply: 230VAC, 50/60Hz
  • Maximum Load Capacity: Adjustable from 1A to 63A (default: 60A)
  • Over-Voltage Protection Range: 230V–300V or OFF (default: 270V)
  • Over-Voltage Recovery Range: 225V–295V (default: 250V)
  • Over-Voltage Action Time: Adjustable 0.1s–30s (default: 0.5s)
  • Over-Voltage Recovery Delay: Adjustable 1s–500s (default: 30s)
  • Under-Voltage Protection Range: 140V–210V or OFF (default: 170V)
  • Under-Voltage Recovery Range: 145V–215V (default: 190V)
  • Under-Voltage Action Time: Adjustable 0.1s–30s (default: 0.5s)
  • Under-Voltage Recovery Delay: Adjustable 1s–500s (default: 30s)
  • Over-Current Adjustment Range: Adjustable 1A–63A (default: 60A)
  • Over-Current Action Time: Adjustable 0.1s–30s (default: 0.5s)
  • Over-Current Recovery Delay: Adjustable 1s–500s (default: 30s)
  • Power-On Delay Time: Adjustable 1s–500s (default: 10s)
  • Power Consumption: <2W
  • Mechanical Life: Up to 100,000 operations
  • Installation: 35mm DIN Rail
