Main Image

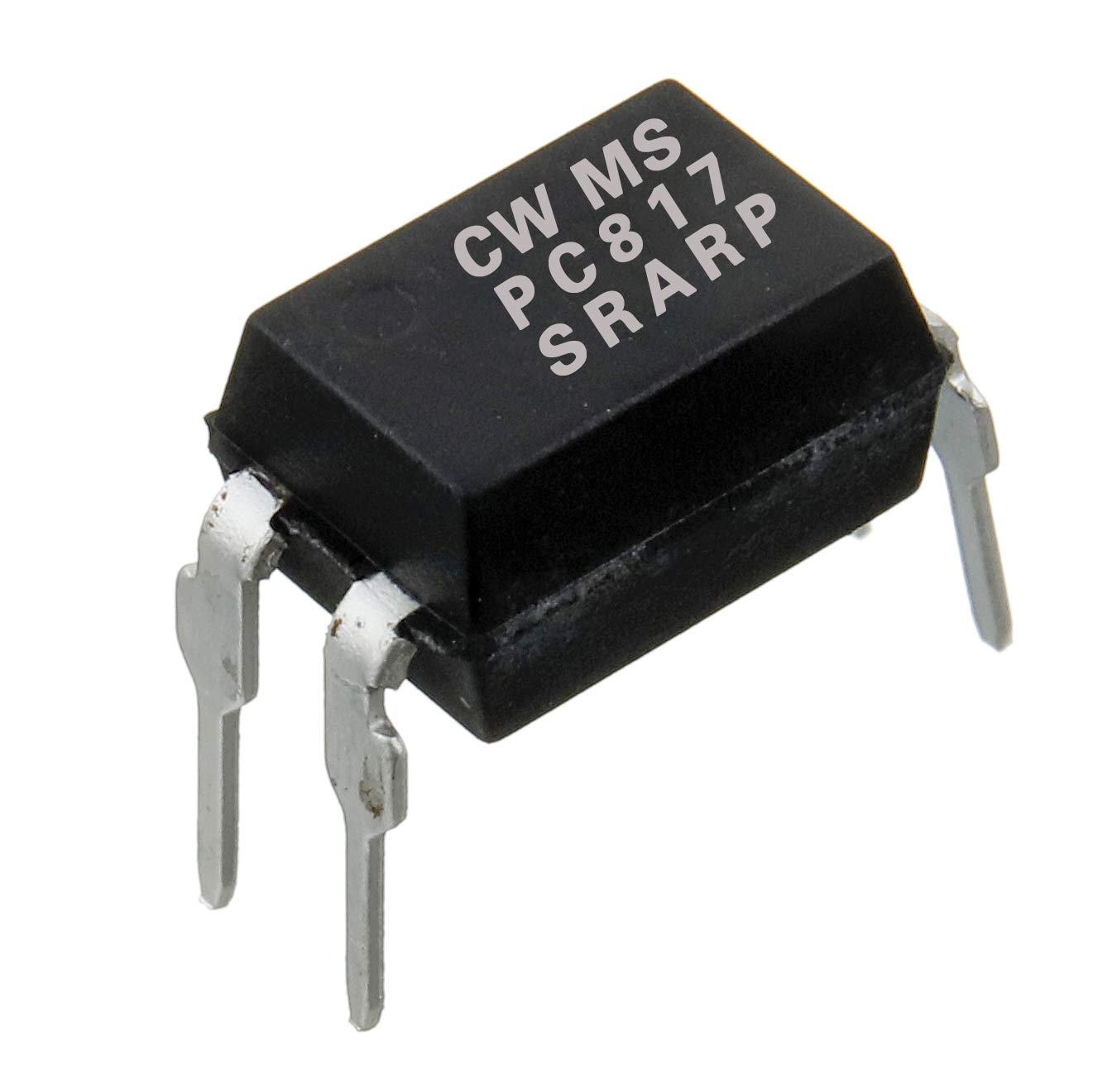

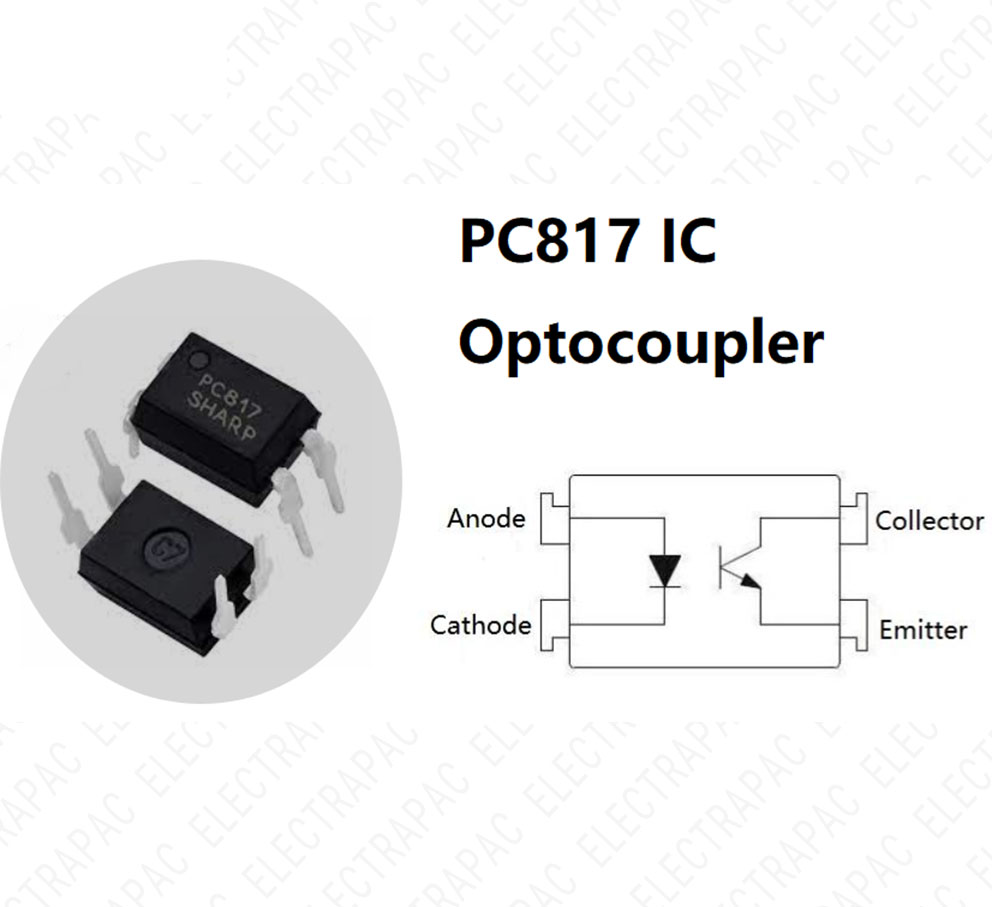

PC817 Optocoupler

Ratings 0

৳0

৳9

Brand : Non_Brand

Color Family

Black

Size Int:

Small

Stock Quantity:

20

Description of PC817 Optocoupler

These are High Density Mounting Type Photocouplers used in Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending machines, Electric home appliances, such as fan heaters etc.

Features

Current transfer ratio (CTR:MIN.50% at IF=5mA Vce=5V)
High isolation voltage between input and output (Viso:5300Vrms).
Compact dual-in-line package.

Specification of PC817 Optocoupler

Maximum Forward current:50 mA
Peak forward current:1A
Reverse voltage:6 V
Maximum Collector-emitter voltage:35V
Maximum Emitter-collector voltage:6V
Maximum Collector current:50mA
Total power dissipation:200mW

Documentation of PC817 Optocoupler

Datasheet
