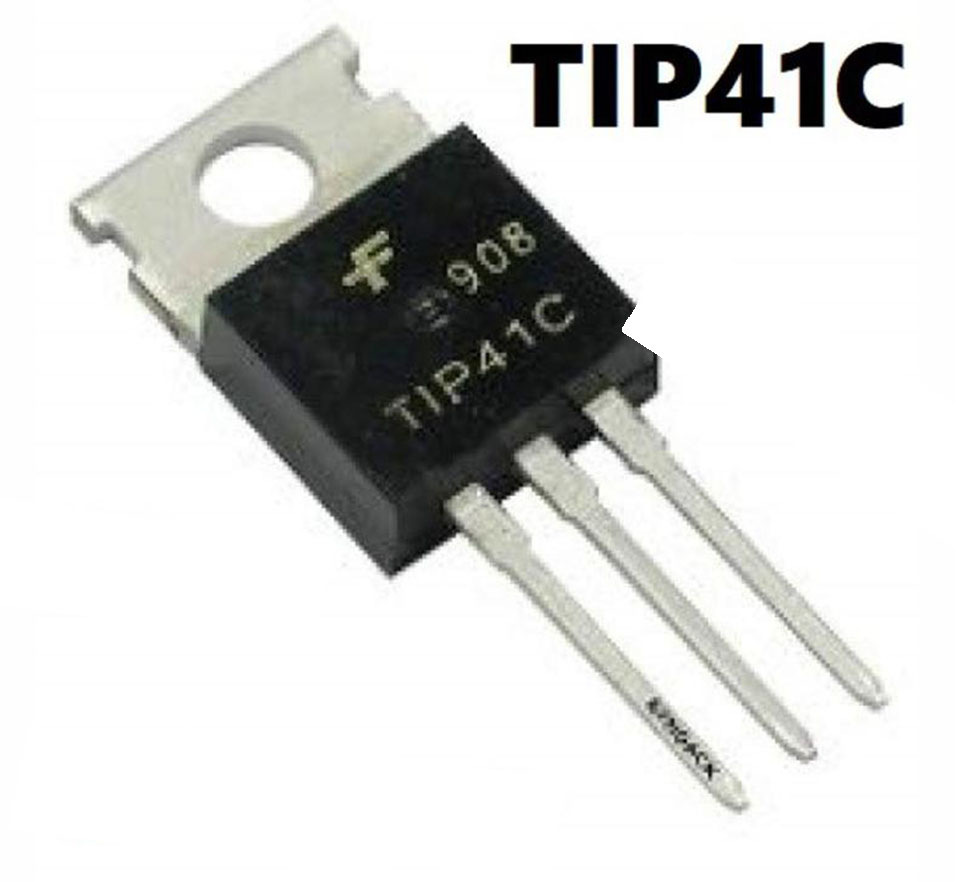

TIP41C Bipolar NPN Transistor

Ratings 0

~~৳65~~

৳51

Brand : Non_Brand

Color Family

Black

Size Int:

Small

Stock Quantity:

Package Type: TO-220
Transistor Type: NPN
Max Collector Current (IC): 6A (6000mA)
Max Collector-Emitter Voltage (VCE): 100V

Description:
The TIP41C is an affordable, general-purpose NPN power transistor commonly used for amplification and switching applications. It can drive loads up to 6A and is ideal for replacing TIP31, TIP31C, or similar transistors when more power handling is needed. The transistor is capable of driving up to 100V of load, with a maximum collector dissipation of 65W, which makes it perfect for audio amplification and other high-power applications. A heatsink should be used when driving large loads to prevent overheating.

The TIP41C is suitable for a variety of general-purpose switching and amplification applications, such as driving DC motors, LEDs, relays, and amplifying signals. It is also widely used in audio amplification circuits. To ensure long-term stability and performance, it is recommended to keep the load below 6A, use a suitable heatsink, and operate within the maximum voltage and temperature limits.

Specifications:

PNP Complementary: TIP42C
Replacement and Equivalents: 2SD1895, MJE5180, MJE5181, BD711, BC911
Max Load Voltage:
- TIP41 (Max 40V Load)
- TIP41A (Max 60V Load)
- TIP41C (Max 80V Load)

Package:
1x TIP41C Bipolar NPN Transistor

FAQ:
1. What is the maximum current that the TIP41C can handle?
