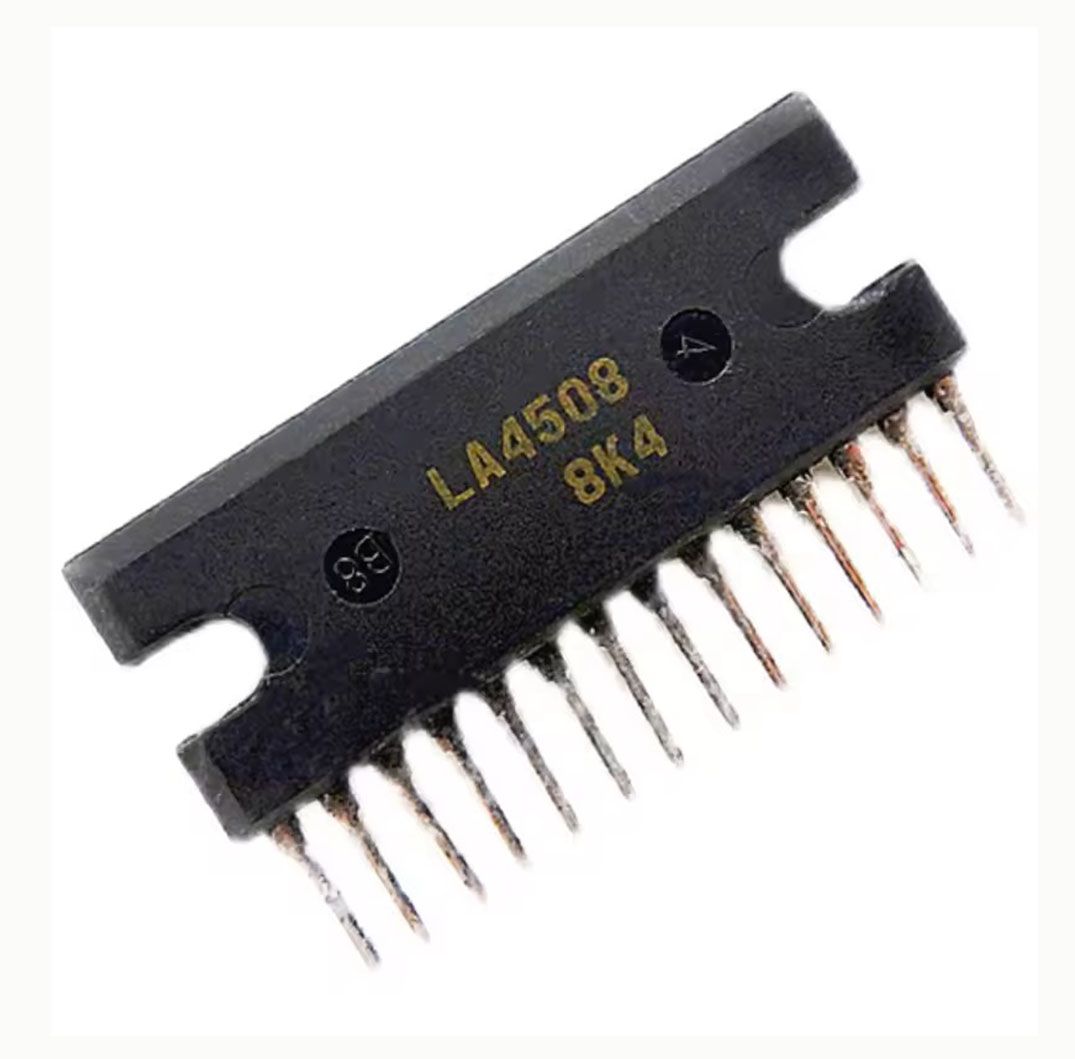

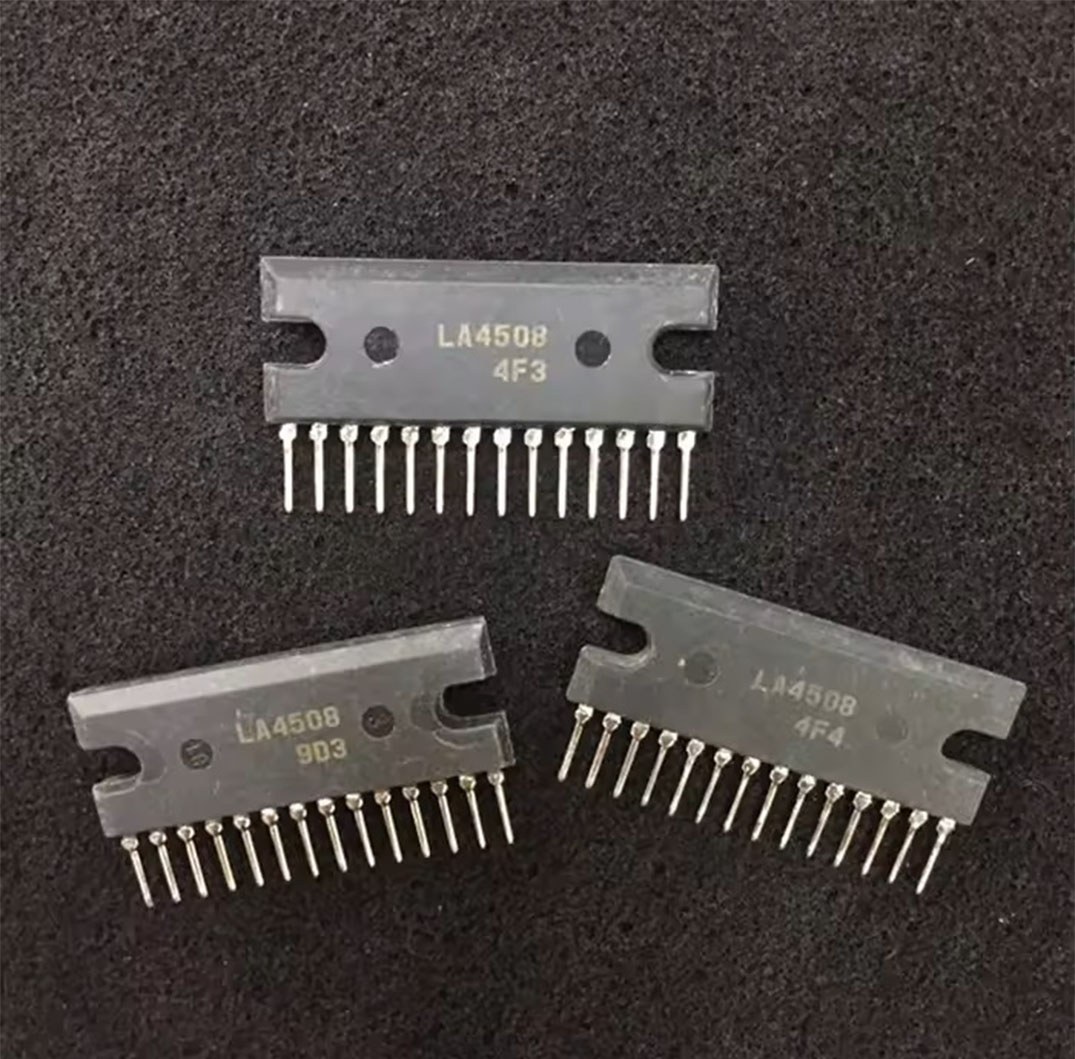

LA4508 IC LA4508 8.5W 9V 12V LA4508 Amplifier Board IC ZIP 14 Pin Leads Audio Power Amplifier Dual 2 Channels Stereo Audio Amplifier Circuit IC

Ratings 0

~~৳90~~

৳70

Brand : Non_Brand

Color Family

Black

Size Int:

Small

Stock Quantity:

10

Description:

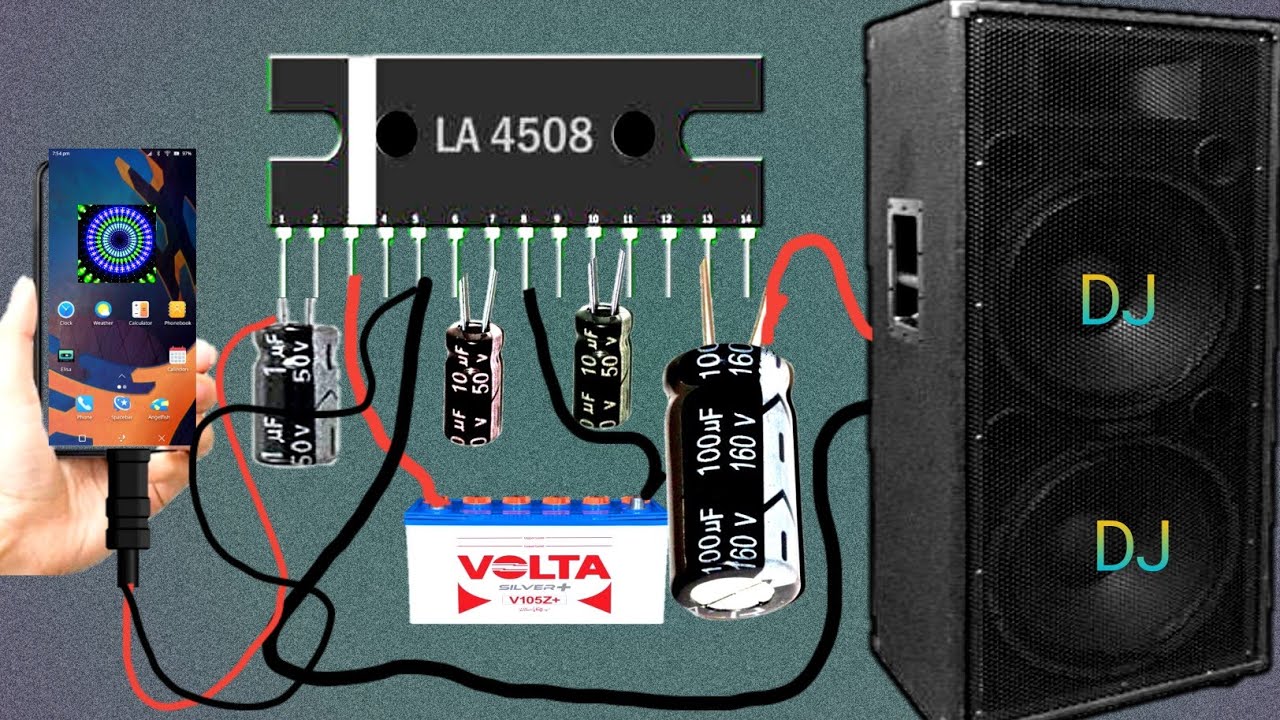

The LA4508 is a reliable dual-channel stereo audio amplifier IC capable of delivering 8.5W output at 8 Ohm load. Designed in a compact ZIP-14 package, it operates efficiently on a 9–12V DC power supply. This IC is widely used in audio amplification systems, multimedia speaker projects, and DIY audio boards for crisp and clear stereo sound.

Specifications:

Product Name: LA4508
Product Category: Comparators and Amplifiers
Sub Category : Audio Amplifier
Package Type: ZIP-14
Number of Pins: 14
Supply Voltage Range: 9 – 12V
Number of Channels: 2
Output Power: 8.5W
Output Impedance 8 OHM
Dimension: 36.5x14x4.5mm
Weight approx.: 6.87gm

Features:

Minimum number of external parts required.
Small pop noise at the time of power supply ON/OFF and good starting balance.
Good ripple rejection : 46dB (typ.)
Good channel separation.
Small residual noise (Rg=0).
Low distortion over a wide range from low frequencies to high frequencies.
Easy to design radiator fin.
Built-in audio muting function..
Thermal protector
Over-voltage, surge voltage protector
Pin-to-pin short protector
