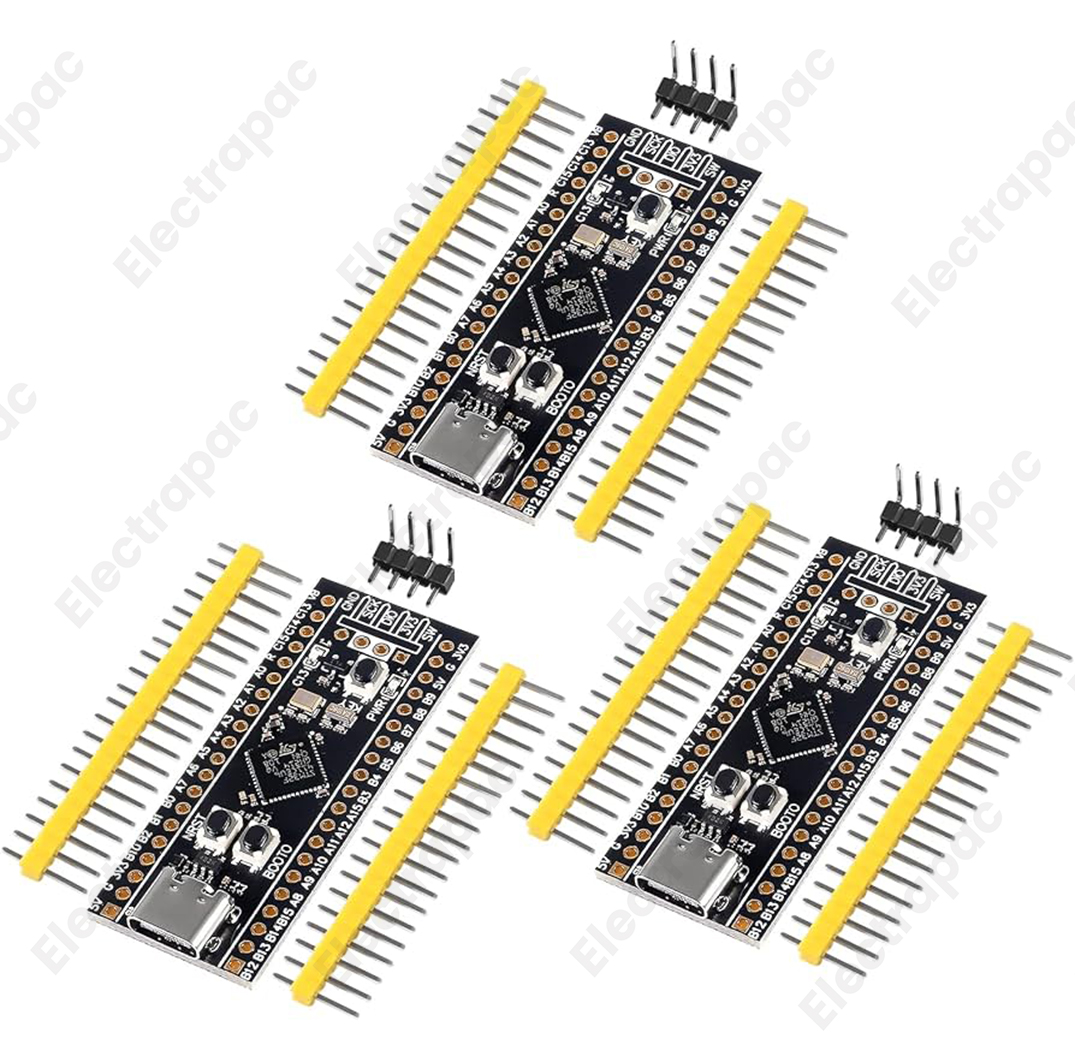

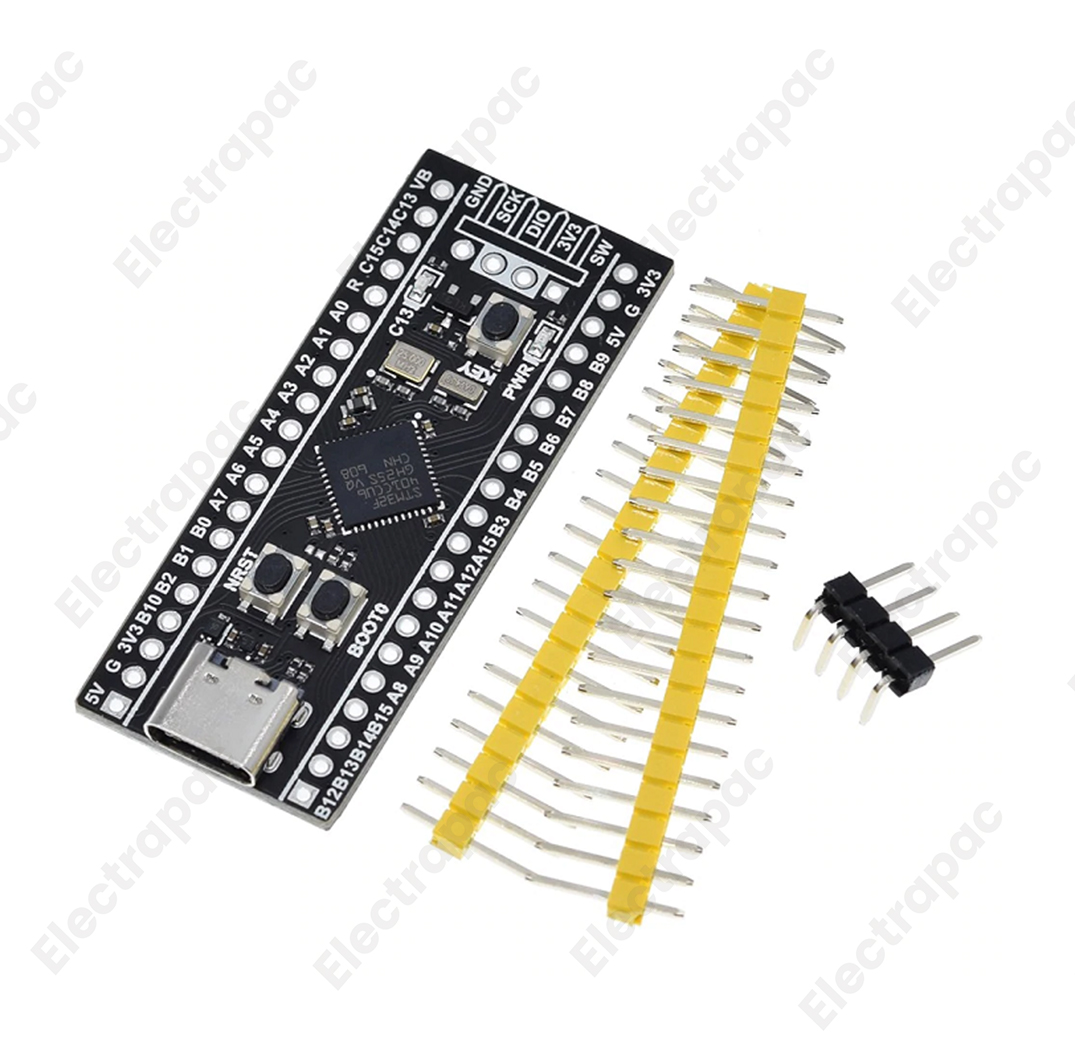

STM32F401CCU6 STM32F4 Minimum System Development Board

Ratings 0

৳0

৳587

Brand : Arduino

Color Family

Multi Color

Size Int:

Small

Stock Quantity:

8

STM32F401CCU6 STM32F4 Minimum System Development Board 3.3V 5V Module ARM Cortex-M4 Micro USB Interface 64KB 256KB Price in Bangladesh.

The New STM32F401CCU6 STM32F4 Black Pill Development Board with STM32F401 series chip with higher clock frequency, floating-point arithmetic module, more internal SRAM (64KB), more Flash (256KB), and enhanced peripherals. STM32F401CCU6 STM32F4 Black Pill also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

Features

On-board Mini USB interface, you can give the board power supply and USB communication.
test indicator LED (On C13 io)
reset button and power indicator LED
Boot0 Configuration Push-Button
On-board 100ma 3.3V Regulator
All GPIO are led out and the names of the pins are marked
After soldering the headers, you can directly plug the board onto the breadboard.

Technical Specifications

CPU Part Number: STM32F401CCU6
Core: ARM 32 Cortex-M4 CPU.
Debug mode: SWD (can be programmed with ST-LINK V2)
CPU Internal Maximum Clock: 84MHz
External Clock Source: 25MHz crystal
256K flash memory, 64K SRAM
Connectivity: I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Peripherals: Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
2.0-3.6V power, I/O
USB Connector Type: Type C
Reset(POR/PDR)
Size:5.3cm x 2.0cm

Package Includes :

1 x STM32F401CCU6 STM32F4 Minimum System Development Board.
