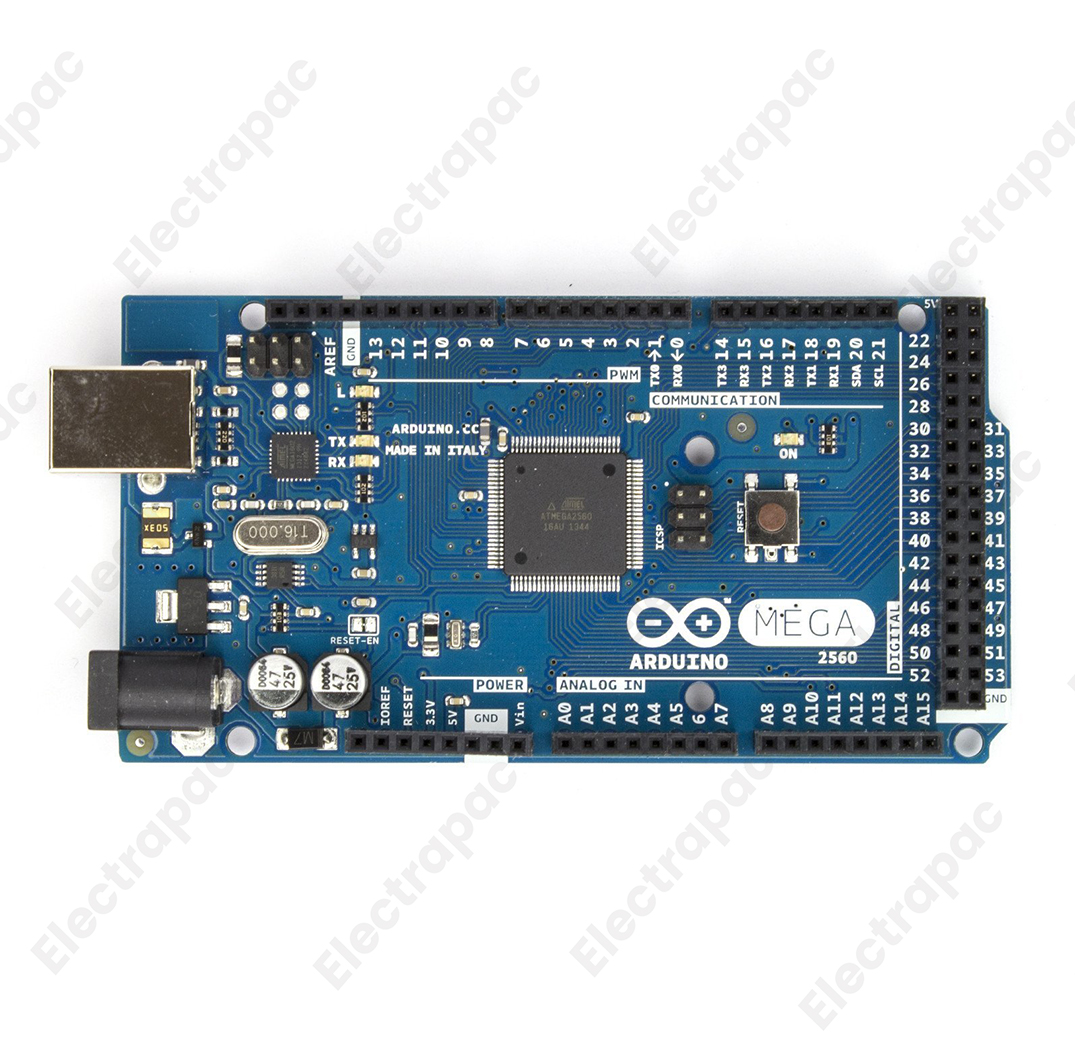

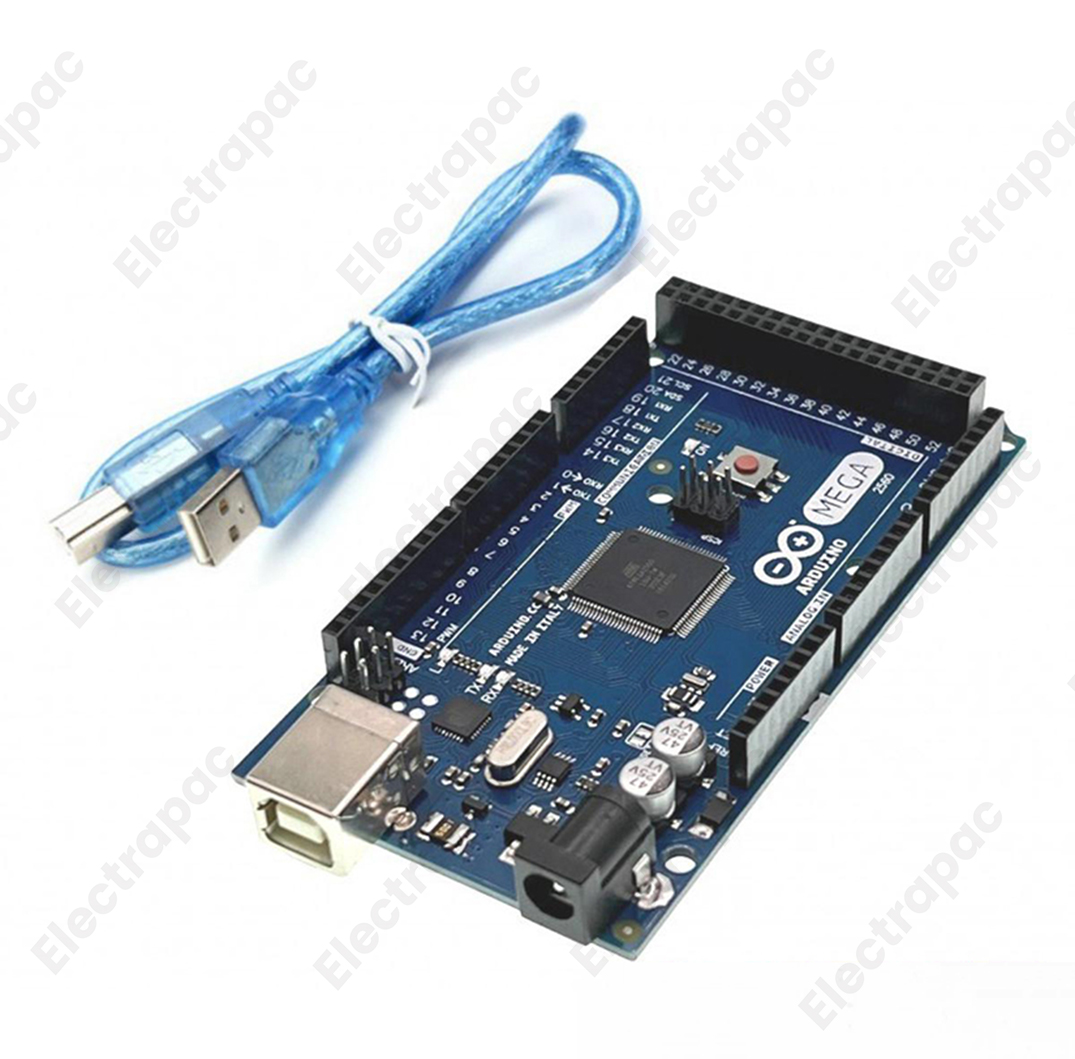

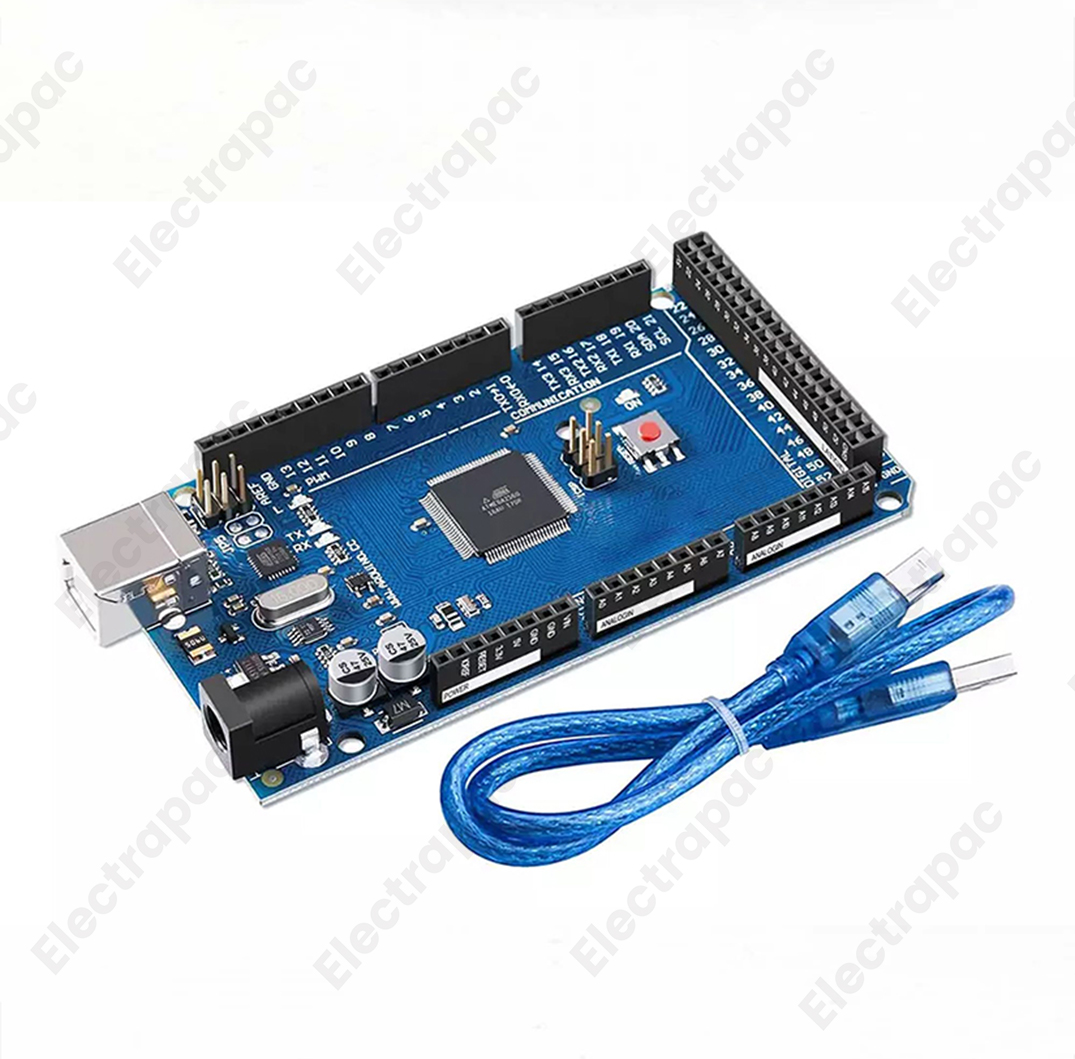

Arduino Mega 2560 R3 Microcontroller Board with USB Cable

Ratings 0

~~৳1780~~

৳1700

Brand : Arduino

Color Family

Multi Color

Size Int:

Medium

Stock Quantity:

10

The Arduino Mega 2560 Rev3 (Original) is a powerful microcontroller board based on the ATmega2560. It is designed for projects requiring more I/O pins, larger memory, and higher performance compared to the Arduino Uno. With 54 digital I/O pins, 16 analog inputs, and multiple serial ports, it is ideal for complex robotics, 3D printers, and automation systems. The Mega 2560 is fully compatible with the Arduino IDE, making it easy for both beginners and advanced users to develop large-scale projects.

Features:

ATmega2560 microcontroller with high performance
54 digital I/O pins, 15 supporting PWM output
16 analog input pins for sensors and data collection
Onboard USB interface for easy programming
Built-in bootloader for quick uploading
Wide input voltage support (6–20V, 7–12V recommended)
Compatible with most Arduino shields and libraries
LED indicator on pin 13 (LED_BUILTIN)

Applications:

Robotics and automation projects
3D printers and CNC machines
IoT systems with multiple sensors
Educational and research projects
Advanced prototyping requiring high I/O count

Technical Specifications:

Parameter	Specification
Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7–12V
Input Voltage (limit)	6–20V
Digital I/O Pins	54 (15 provide PWM output)
Analog Input Pins	16
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	256 KB (8 KB used by bootloader)
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
LED_BUILTIN	13
Length	101.52 mm
Width	53.3 mm
Weight	37 g
