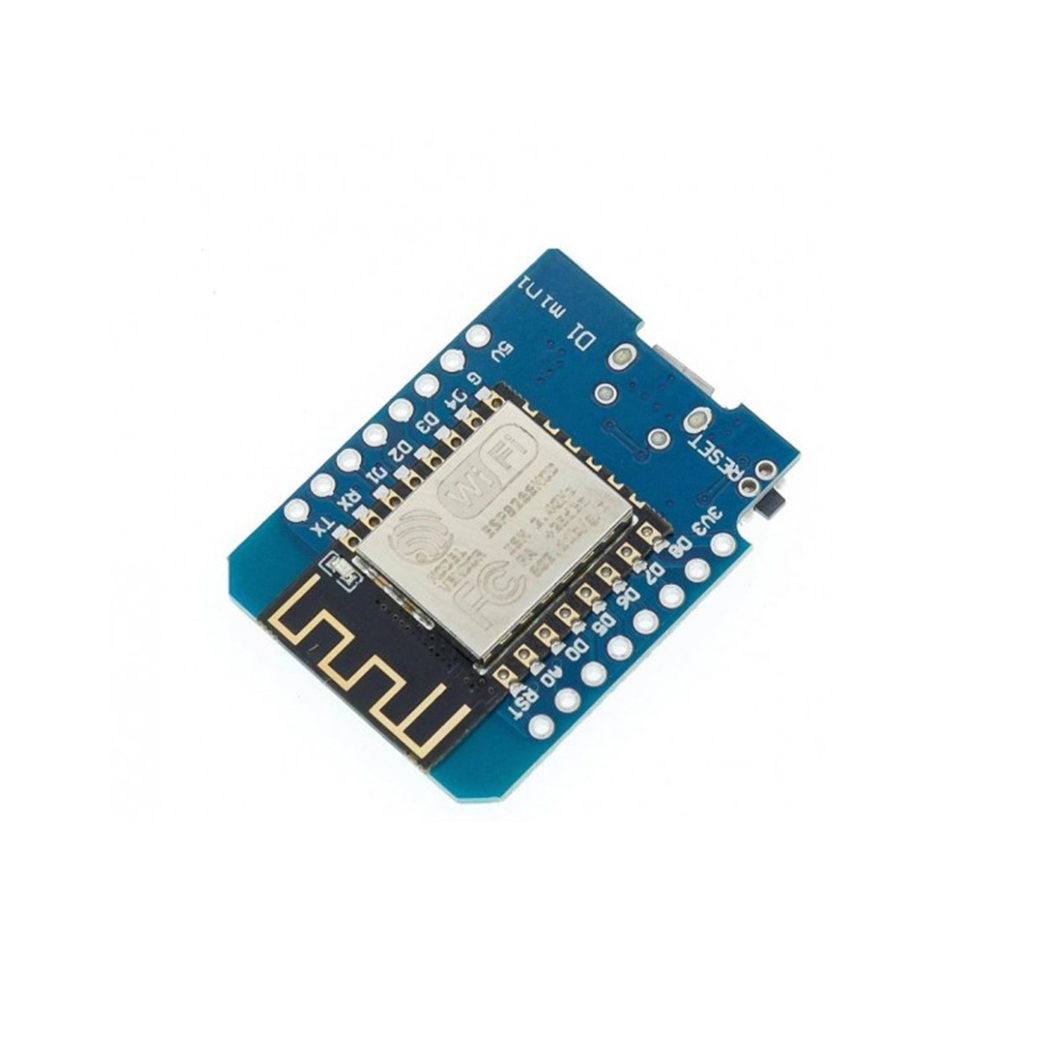

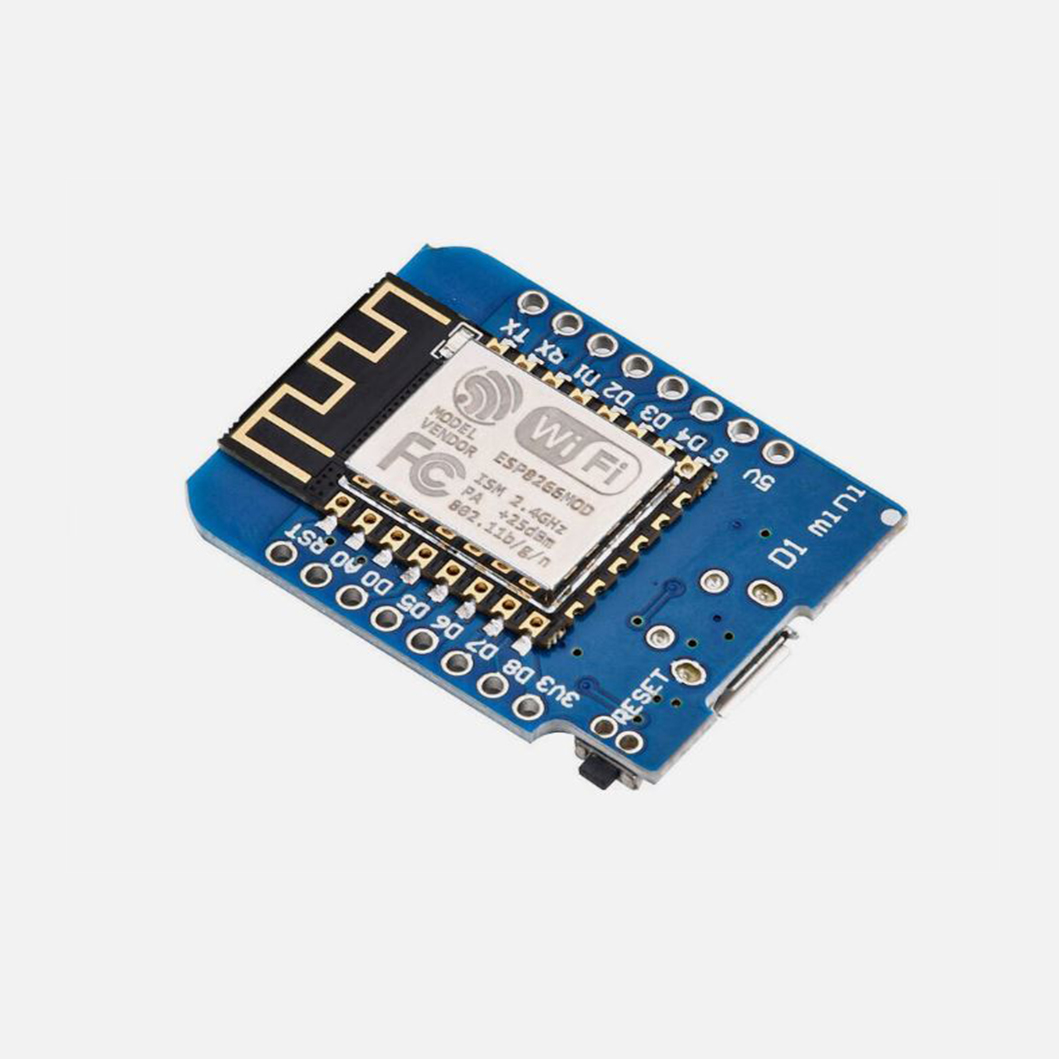

WEMOS D1 Mini ESP8266 ESP-12F Type-C Development Board

Ratings 0

~~৳310~~

৳279

Brand : Non_Brand

Color Family

Multi Color

Size Int:

Small

Stock Quantity:

10

ESP8266 WEMOS D1 Mini (Type-C) with ESP-12F module for IoT & WiFi automation
Built-in 4MB Flash, 2.4GHz WiFi b/g/n, AP/STA modes
Type-C USB input with CH340 USB-UART for fast & stable uploading
Supports Arduino, MicroPython, IoT Cloud platforms used in Bangladesh
Fast Home Delivery all over Bangladesh
Wide developer-friendly interface: UART, I2C, SPI, 1-Wire, ADC
PCB Antenna for strong indoor WiFi coverage in BD homes

Description of WEMOS D1 Mini ESP8266 ESP-12F

The WEMOS D1 Mini ESP8266 ESP-12F is a breakout board based on ESP8266 microcontroller which is great for regular, study ad professional projects of Bangladesh.
Moreover, the WEMOS D1 Mini ESP8266 is very cost effective and affordable, which makes it perfect for the users of Bangladesh.
The WEMOS D1 Mini ESP8266 (Type-C) is a compact WiFi-enabled microcontroller board ideal for IoT, automation, smart home systems, and sensor-based projects.

Main features

ESP8266 ESP-12F module with built-in WiFi
USB Type-C port for modern device compatibility
4MB Flash memory for firmware & IoT applications
Supports AP, STA & AP+STA WiFi modes
Secure network support: WPA/WPA2, TKIP, CCMP, WEP
11× GPIO, 10× PWM, 1× ADC input
Interfaces: UART, I2C, SPI, 1-Wire
CH340 USB-UART converter for stable uploading
Compact: 34×25 mm, lightweight 10 g
Suitable for Arduino IDE & MicroPython

Technical Specifications

Parameter	Description
Country of Origin	China
System	ESP8266 (ESP-12F Module)
Flash Memory	4MB
WiFi Standard	2.4GHz, 802.11 b/g/n
USB Connector	USB Type-C
Warranty	4 Day General Warranty
