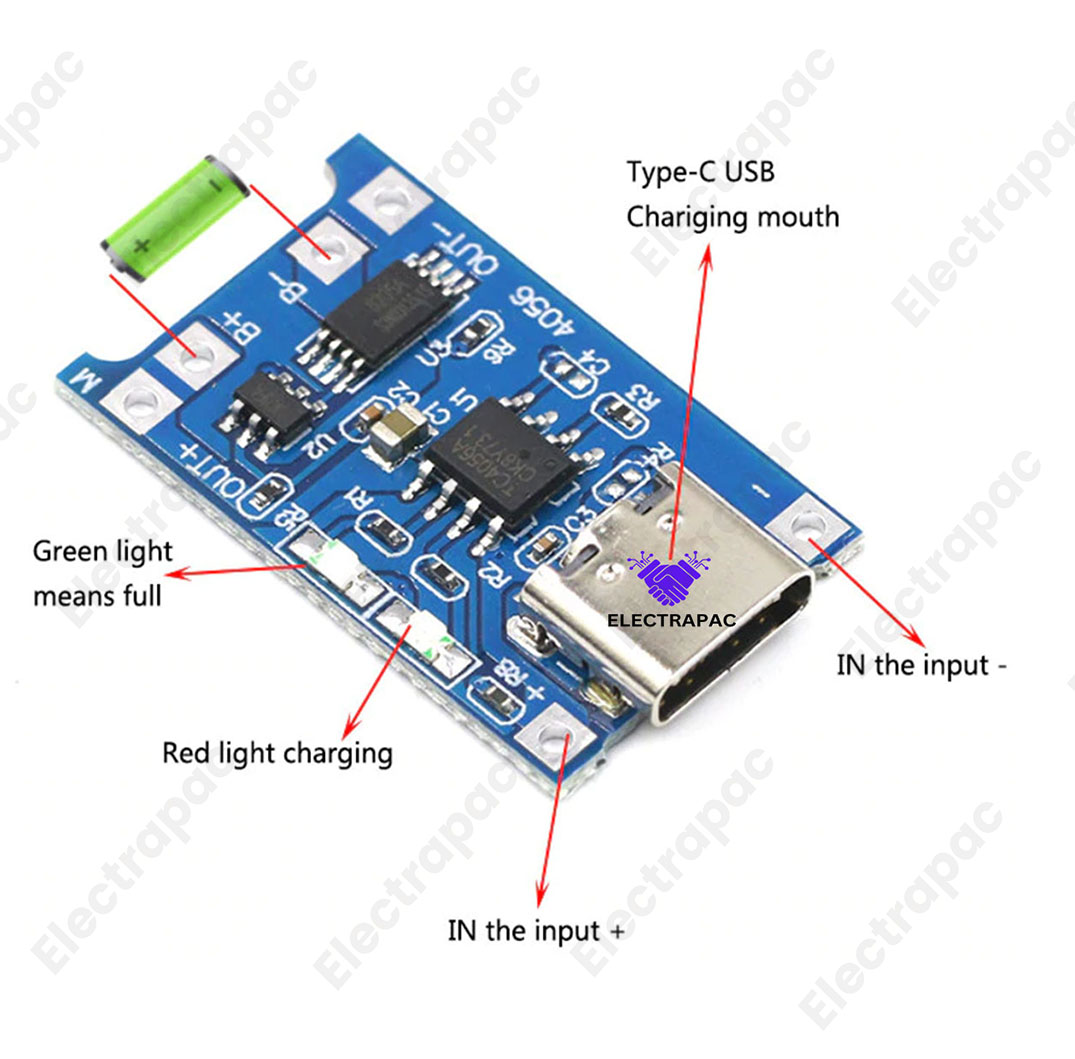

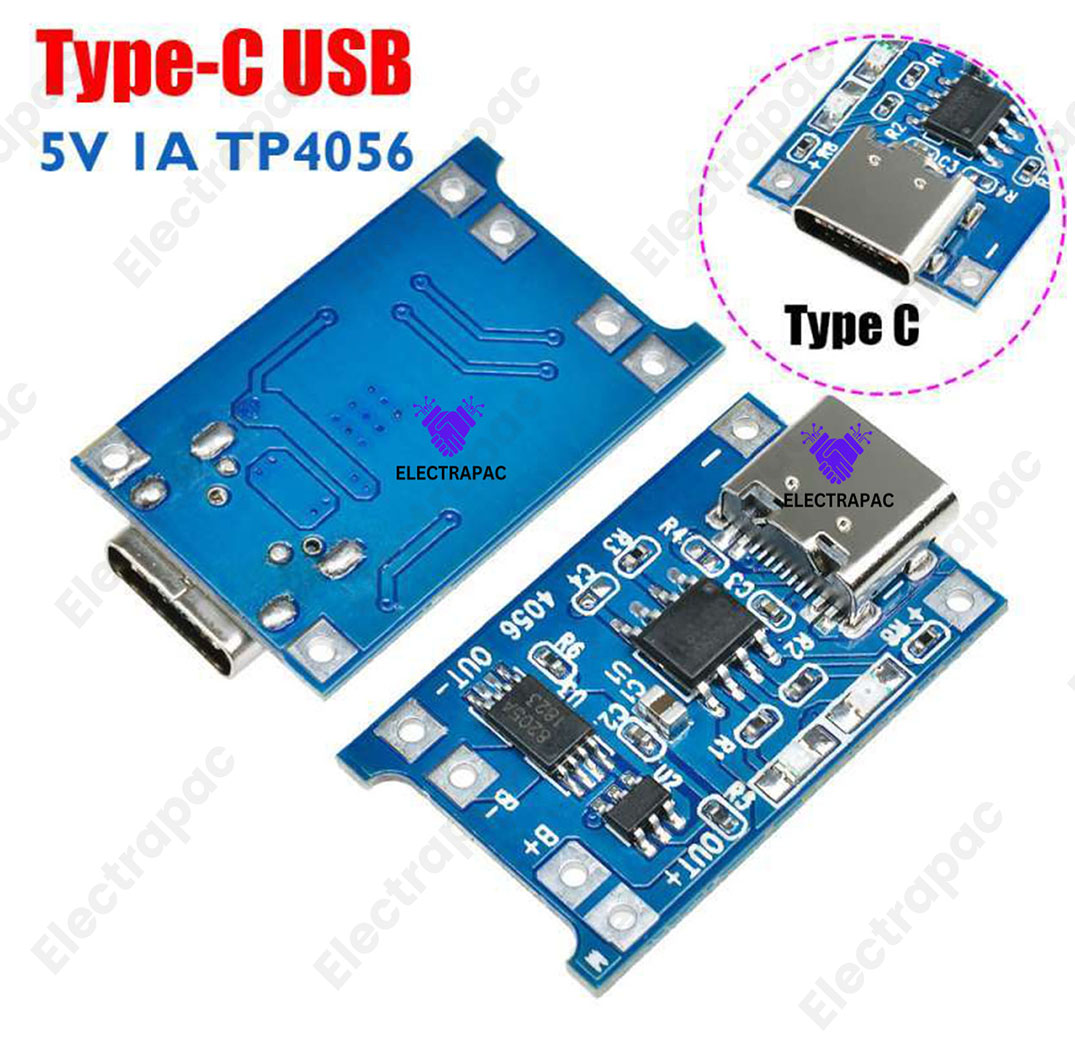

Type-B & C USB 5V 1A 18650 tp4056 lithium battery charger module with protection charging board

Ratings 0

৳40

৳32

Brand : Non_Brand

Color Family

Multi Color

Size Int:

Small

Stock Quantity:

15

Description:
The Type-C USB 5V 1A 18650 TP4056 Lithium Battery Charger Module with Protection Charging Board offers a reliable and compact solution for safely charging 18650 lithium batteries. It supports 5V input via a Type-C USB connector and includes built-in protections against overcharge, over-discharge, and over-current. The module supports charging currents of up to 1A and has LED indicator lights for easy monitoring of charging status. This module is perfect for various DIY projects, ensuring battery longevity and safety.

Specifications:

  • Input Voltage: 4.35V - 6V (Recommended 5V)
  • Charging Cut-off Voltage: 4.2V ± 1%
  • Maximum Output Current: 1000mA (1A)
  • Overcharge Protection Voltage: 4.28V
  • Discharge Protection Voltage: 3.2V
  • Over-current Protection: 3A maximum
  • Board Size: 2.5 x 1.65 cm
  • Indicator Lights: Red (Charging), Green (Fully Charged)

Package:

  • 1 x Type-C USB 5V 1A 18650 TP4056 Charger Module

FAQ:

What voltage is required for charging?

  • The module requires an input voltage of 4.35V to 6V, with 5V being the recommended voltage.

What is the maximum charging current the module can handle?

  • This module can handle a maximum charging current of 1A (1000mA).

Does the module have overcharge protection?

  • Yes, the module has overcharge protection, which prevents charging once the battery reaches 4.28V.

How do I know when the battery is fully charged?

  • The indicator light will turn Green when the battery is fully charged. During charging, the light will be Red.

What is the size of the module?

  • The module size is 2.5 cm x 1.65 cm, making it compact and ideal for various applications.
