IP5328P Dual USB Power Bank Module Type-C 3.7V to 5V 9V 12V Step up Fast Quick Charger Circuit Board QC2.0 QC3.0
IP5328P Dual USB Power Bank Module Type-C 3.7V to 5V 9V 12V Step up Fast Quick Charger Circuit Board QC2.0 QC3.0

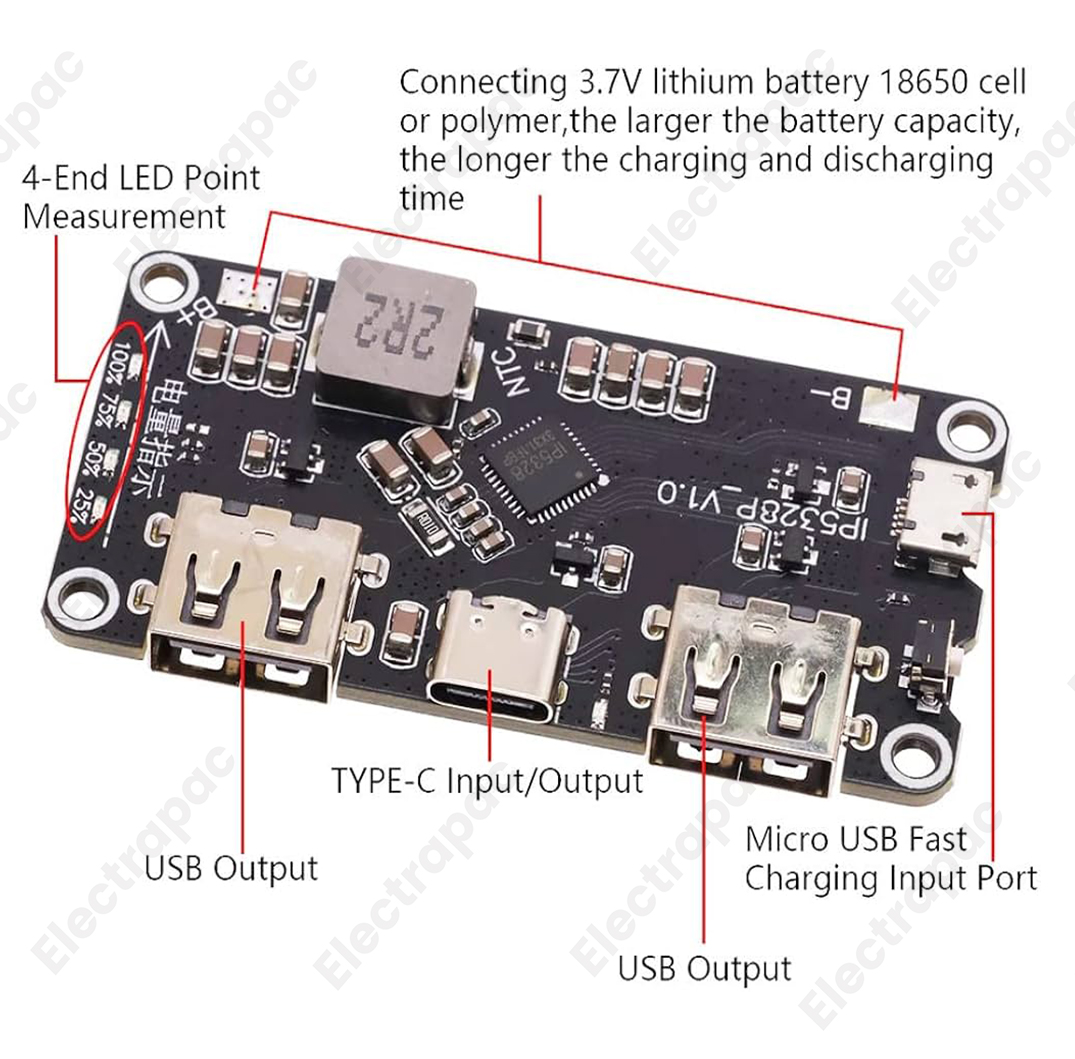

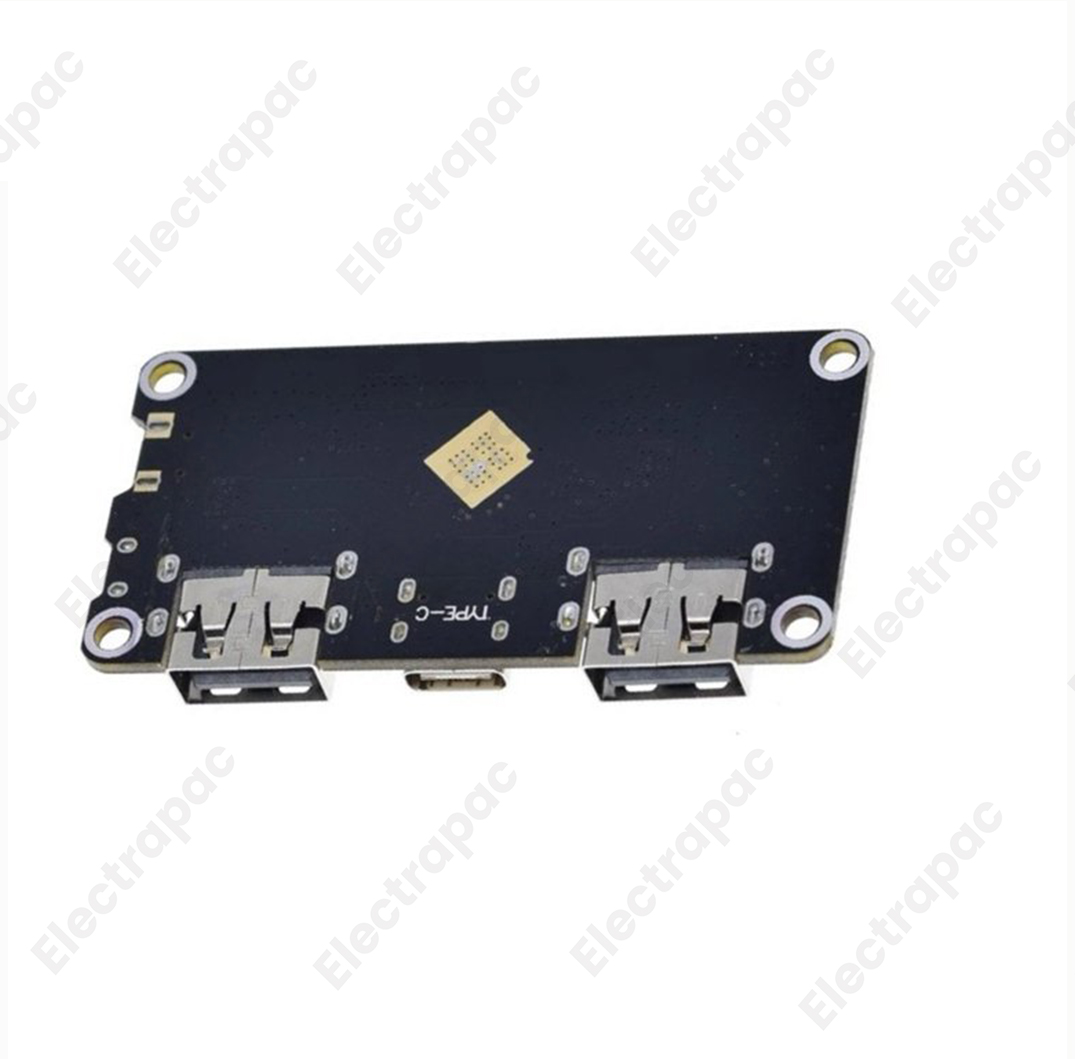

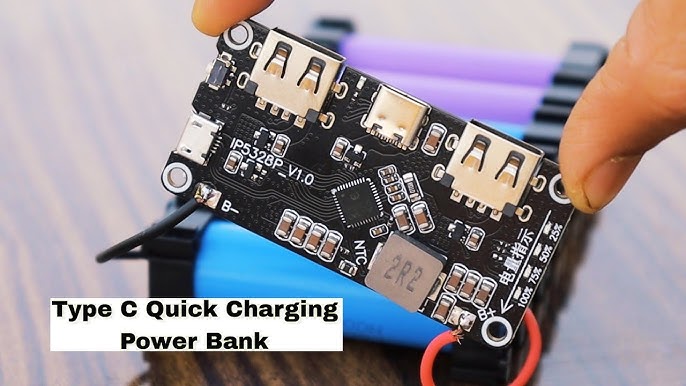

Use the set core IP5328P mobile power solutions, four layers of heavy gold plate, optimize the layout, support A variety of quick charge agreement, two-way 18W quick charge, can support A total of four charging interface: two USB - A output interface, A USB - C interface, A Micro USB interface, four interface support quick charge, including two USB port A support QC3.0, FCP, AFC, MTK, SFCP quick charge output, the power can reach 18 w; Support apple, Samsung, BC1.2 protocol. USB-C port supports USB PD two-way fast charge, and compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output. Micro USB supports FCP, AFC, SFCP fast charging input.
Specification:
- When the battery voltage is less than 3V, 250mA trickle charging is adopted.
- When the battery voltage is greater than 3V, it enters the input constant current charging and the battery terminal is charged to the maximum Current 5.0a;
- When the battery voltage is close to the set battery voltage, it enters the constant voltage charging. When the charging current of the battery end is less than 300mA or so and the battery is charged
- When the pool voltage approaches constant voltage, the charging stops. After charging, if the battery voltage is lower than 4.1v, restart the battery for charging.
- IP5328P adopts switching charging technology and switching frequency is 500kHz. Ordinary 5V input charging, the maximum input power 10W; Quick charge input
- When charging, the maximum input power is 18W. The maximum charging current at the battery end is up to 5.0a, the charging efficiency is up to 94%, and the charging time can be shortened by 3/4.
- IP5328P will automatically adjust the charging current to adapt to different load capacity of the adapter.
- IP5328P does not support the same charging and discharging. In the charging state, the output discharge port will be closed to prevent the input high voltage from damaging the charged device.
Function Description:
- Low power lock and activation
- When IP5328P is connected to the battery for the first time, no matter what the battery voltage is, the chip is in a locked state and the lowest power light will flash 4
- The second time to prompt; In the non-charging state, if the battery voltage is too low to trigger low power shutdown, IP5328P will also enter the locked state.
- In the locked state, in order to reduce the static power consumption, IP5328P does not have the function of inserting detection into the phone, nor can it be activated through the key. this
- When, the button action cannot activate the boost output, but the lowest power light will flash 4 times to prompt. In the locked state, the function of the chip can only be activated by entering the charging state. charging
- IP5328P has a constant current and constant voltage lithium battery charging management system supporting synchronous switch structure. It can automatically match different charging charges
