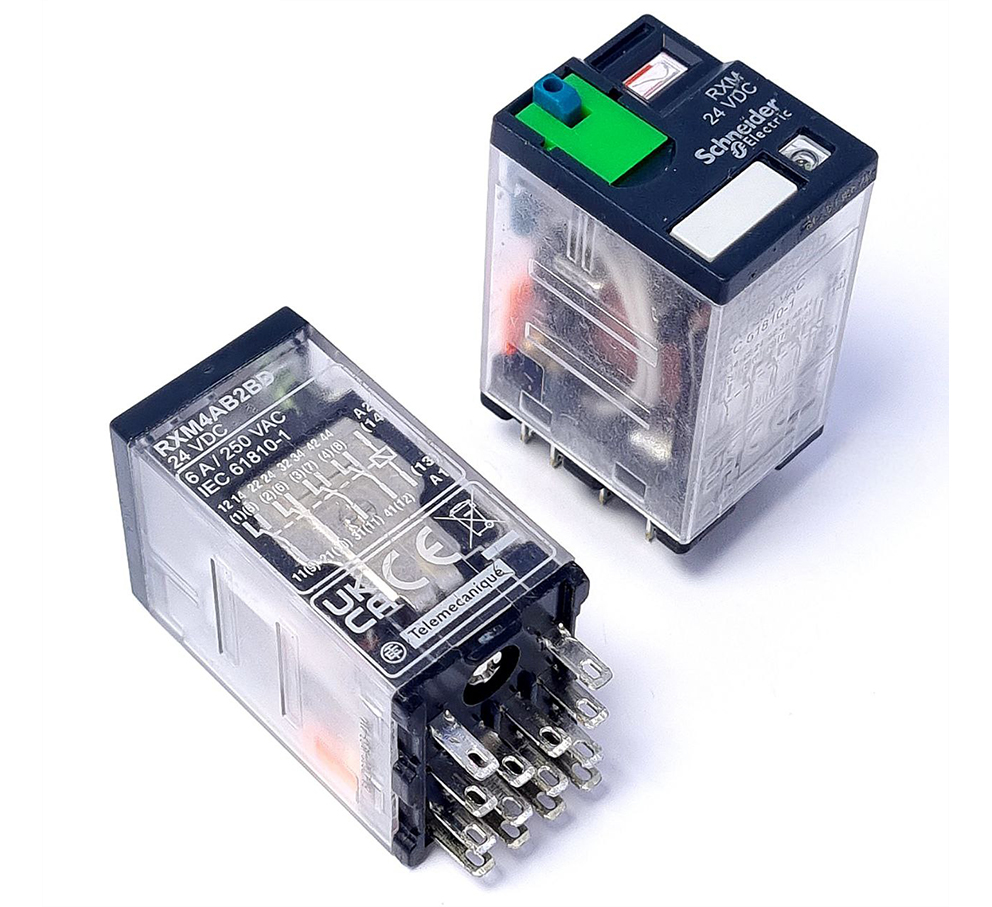

24VDC 14 Pin Relay Rxm4ab2bd Schneider Electric/ 24VDC Relay
0
Ratings 0
৳389
Brand : Schneider Electric
Color Family
Size Int:
Stock Quantity:
The compact Zelio RXM miniature relays without LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.
Range of miniature plug-in relays on base, RXZE2 type
Simple to use- no adjustment required for standard applcations
Easily integrated into current devices & can be adapted for all voltages
Test button and mechanical indicator of relay status
Bases for assembly on DIN rail or with screws to be ordered separately
| Attribute | Value |
|---|---|
| Brand | Schneider Electric |
| Height | 27 mm |
| Coil Power | 900 mW |
| Coil Resistance | 650 Ω |
| Length | 21 mm |
| Coil Voltage | 24 V dc |
| Contact Configuration | 4PDT |
| Mounting Type | Plug In |
| Switching Current | 8 A |
| Maximum Switching Power AC | 1.5 kVA |
| Terminal Type | Plug In |
| Depth | 47.7 mm |
| Number of Poles | 4 |
| Maximum Switching Voltage AC | 250 V |
| Maximum Switching Power DC | 168 W |
| Standards Met | CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL |
