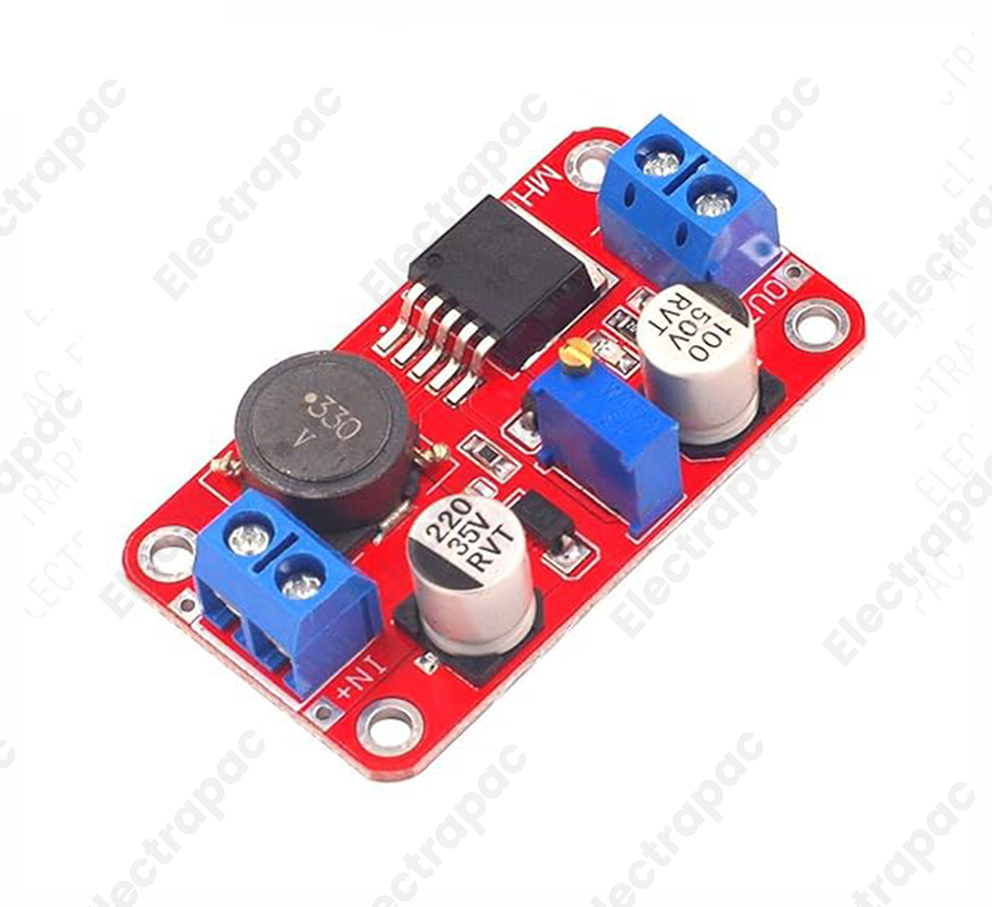

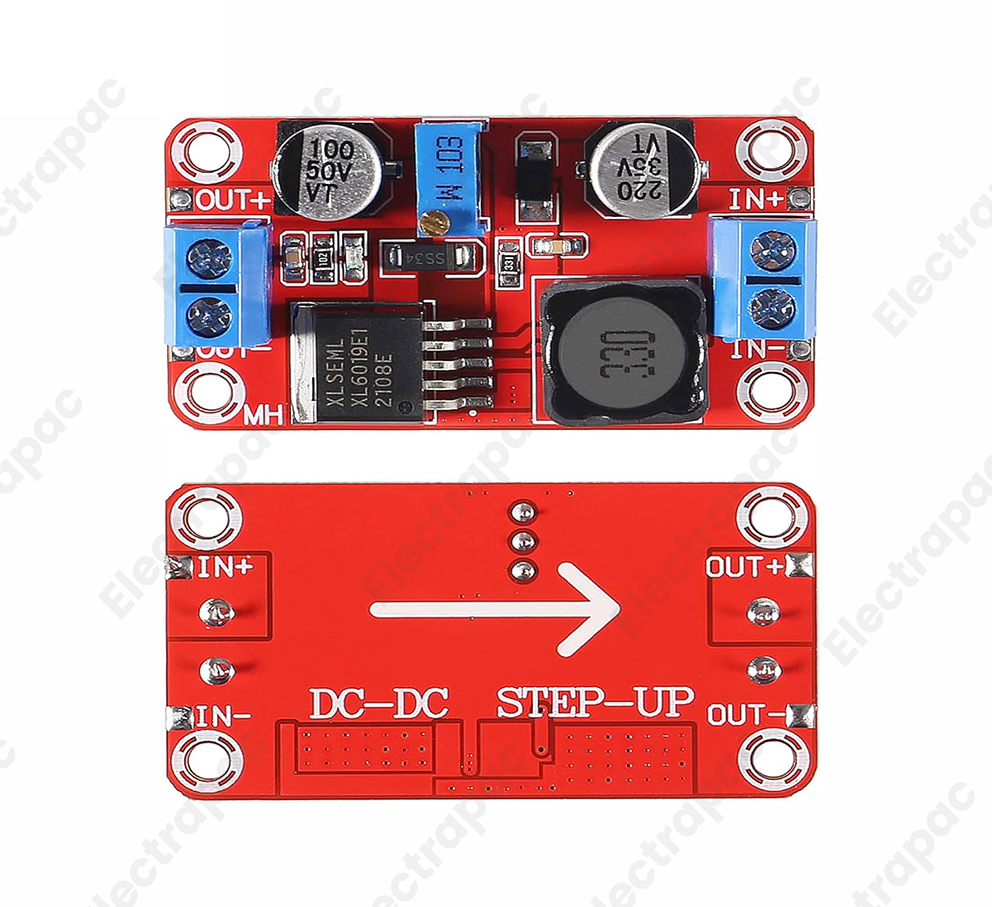

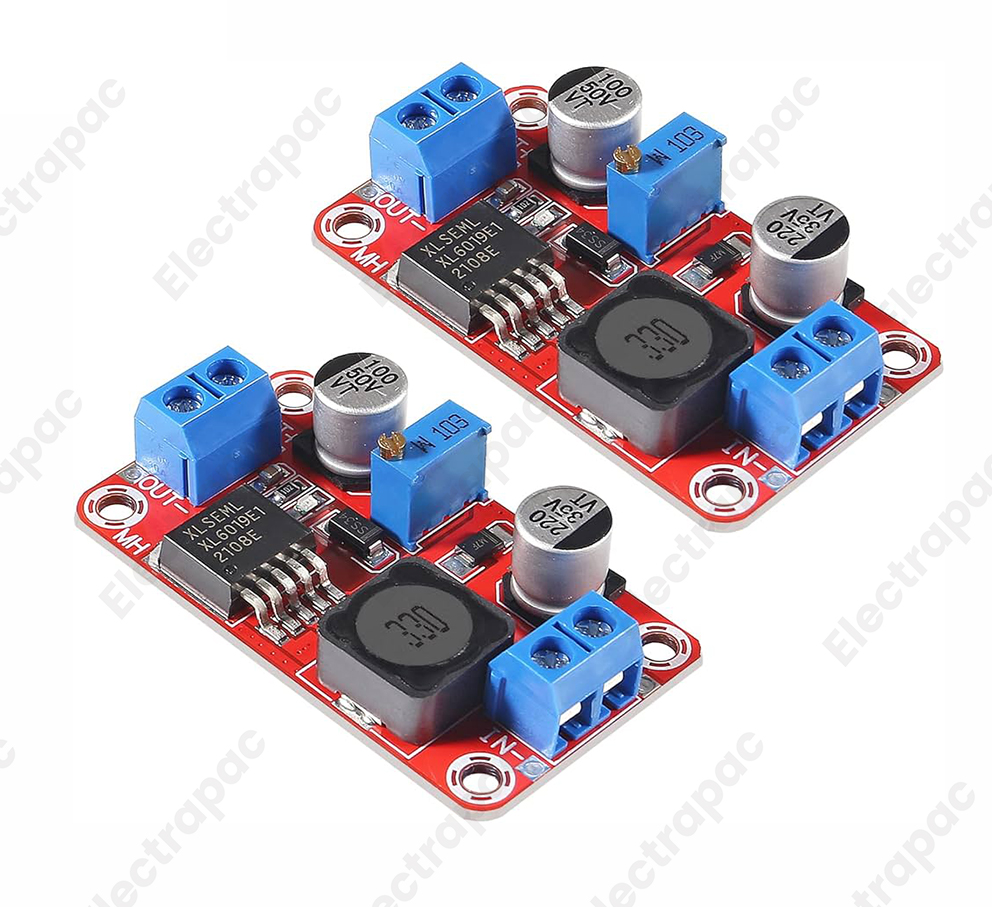

XL6009/XL6019 4A Boost Converter Step Up Adjustable 15W 5-32V to 5-50V DC-DC Power Supply Module High Performance Low Ripple

Ratings 0

৳313

৳227

Brand : Non_Brand

Color Family

Blue
Green
RED

Size Int:

Small

Stock Quantity:

10

Description:

The XL6019 DC-DC Voltage Booster Module is a versatile and efficient power converter designed to step up low input voltages to higher output voltages, making it ideal for a wide range of electronic applications. This module is widely used in situations where the power supply provides a lower voltage than required by the load, making it particularly useful in battery-powered systems, renewable energy setups, and various other projects where voltage needs to be boosted.

Specification:

  • Input Voltage: DC 3-35 V(40V MAX)
  • Output Voltage: DC 5-40V ( 45V MAX Adjustable)
  • Input Current: 5A (MAX)
  • Conversion efficiency: 94% (MAX)
  • Output ripple: 100mv (MAX)
  • Switching Frequency: 220 kHZ
  • Working Temperature: Industrial (-40 ° C to + 85 ° C)
  • Voltage regulation: ± 0.5%
  • Load regulation: ± 0.5%
  • Size: Approx 50 * 28 * 13mm (L * W * H)

Package Contents:

4x XL6019 Boost Converter Module
