DC5V-12V to 12v charging module for 18650 lithium battery UPS voltage converter module ups uninterruptible power control
0
Ratings 0
৳227
Brand : Non_Brand
Color Family
Size Int:
Stock Quantity:
Description:

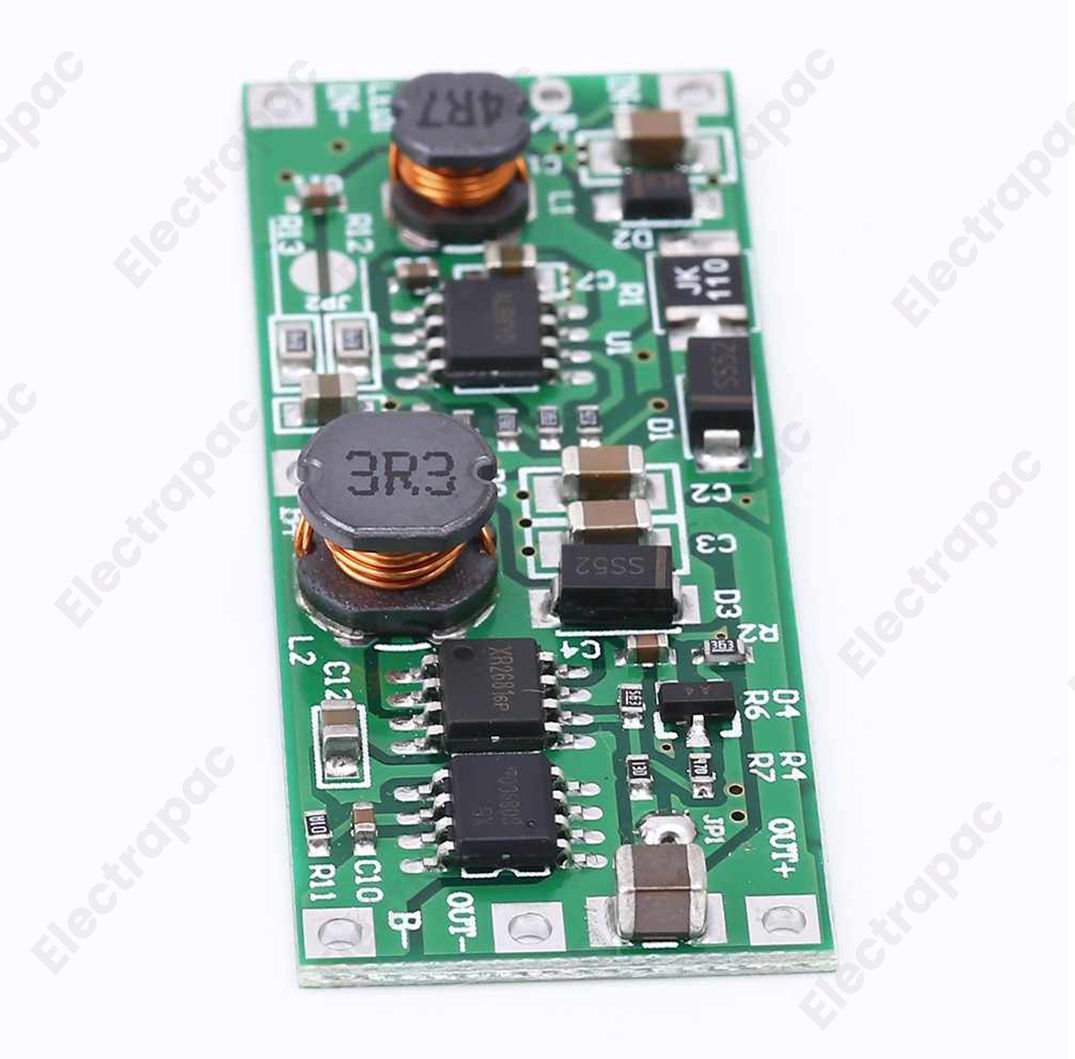

This DC5V-12V to 12V Charging Module is designed as an uninterruptible power supply (UPS) control board for lithium-ion battery charging. It supports both charging and discharging simultaneously and offers high efficiency and large current handling. The module is small in size, making it easy to integrate into various devices. It also features short circuit protection, ensuring safe operation. With an output of 12W and support for 3.7V lithium or polymer batteries up to 15Ah, it’s perfect for applications such as battery charging, mobile power, power conversion, and more. The module also allows users to connect a charging indicator LED to signal the charging status.
Specifications:
Package:
What is the input voltage range for this module?
The input voltage range is DC 5.0V to 12.0V.
Can I charge and discharge at the same time?
Yes, this module supports charging and discharging simultaneously.
What type of battery is supported?
It supports 3.7V lithium or polymer batteries, up to 15Ah (maximum).
What is the maximum output current?
The maximum output current is 1A, though it cannot maintain 1A continuously.

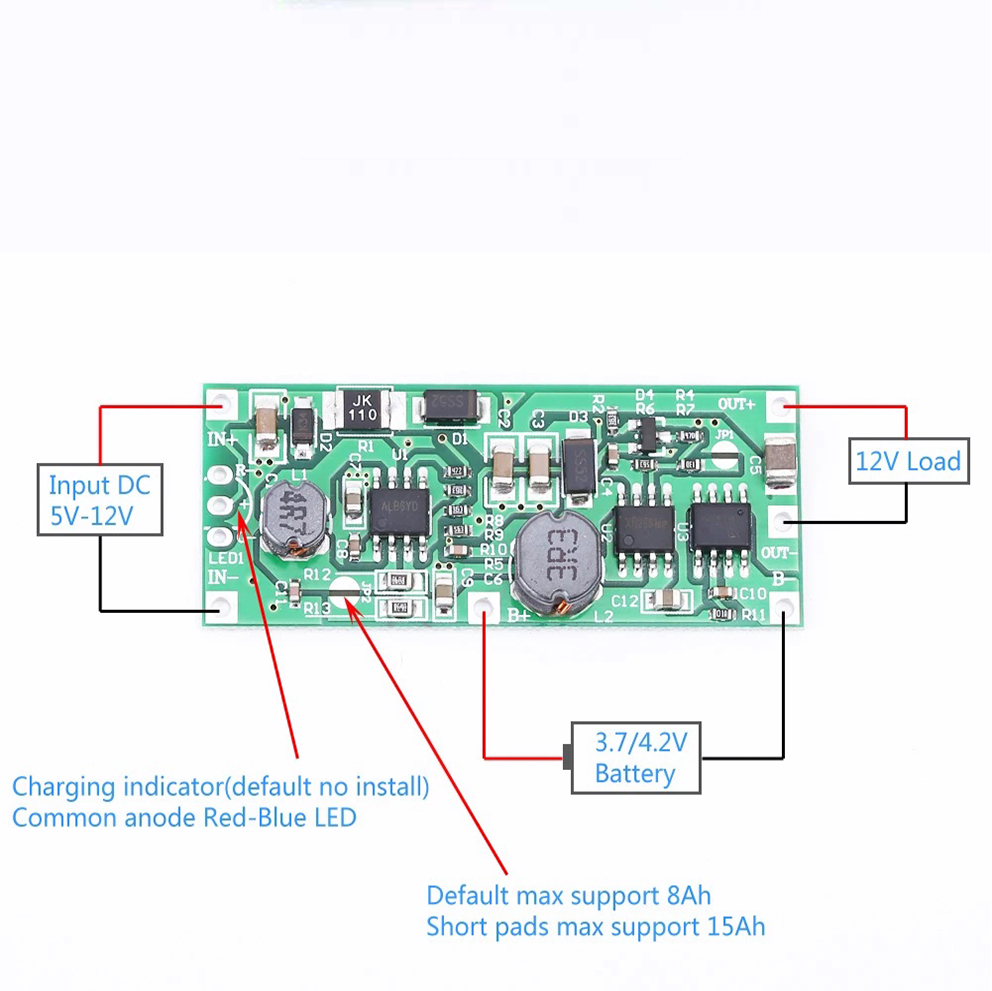

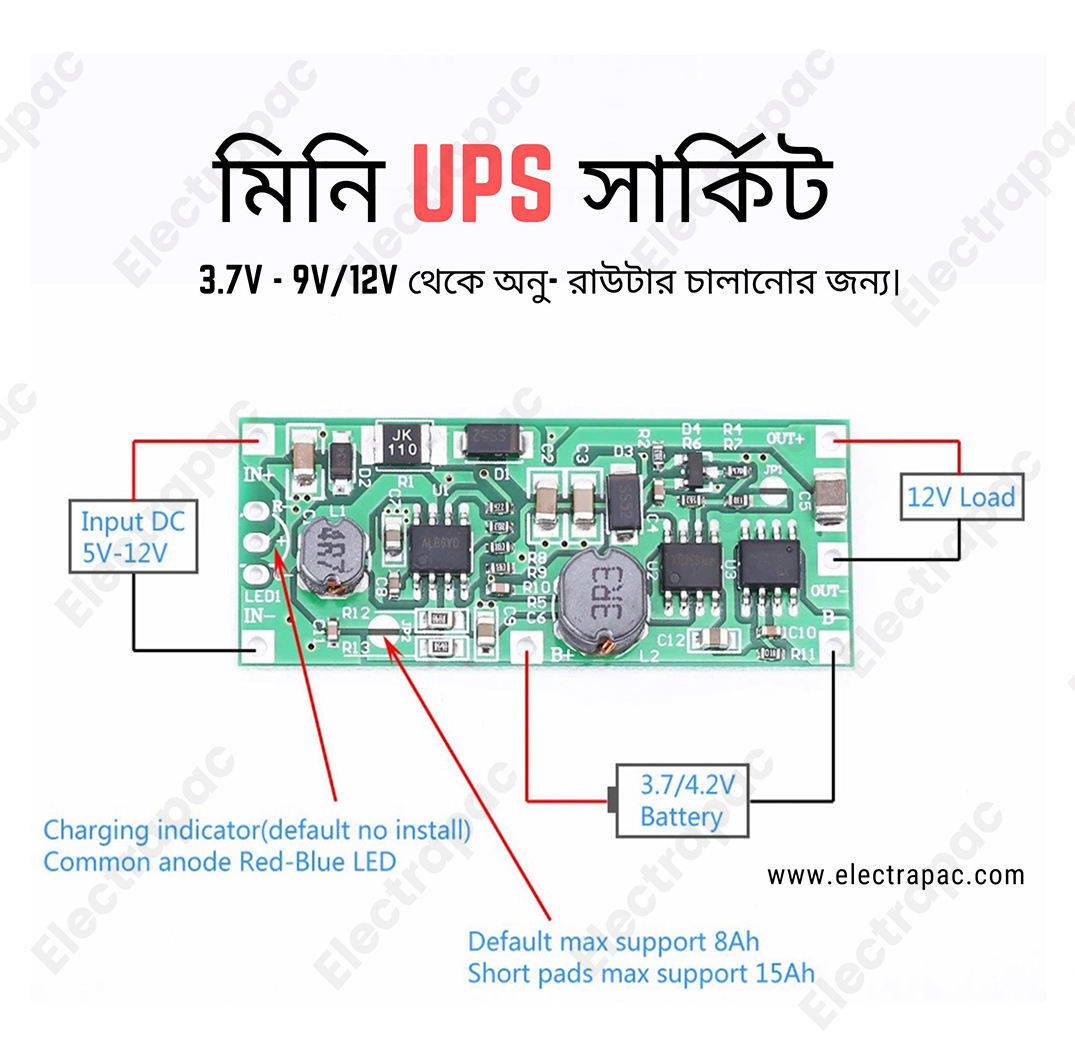

How can I install charging indicators?
You can install a common anode Red-Blue LED for charging indicators, where the red light indicates charging and the blue light indicates output load.
