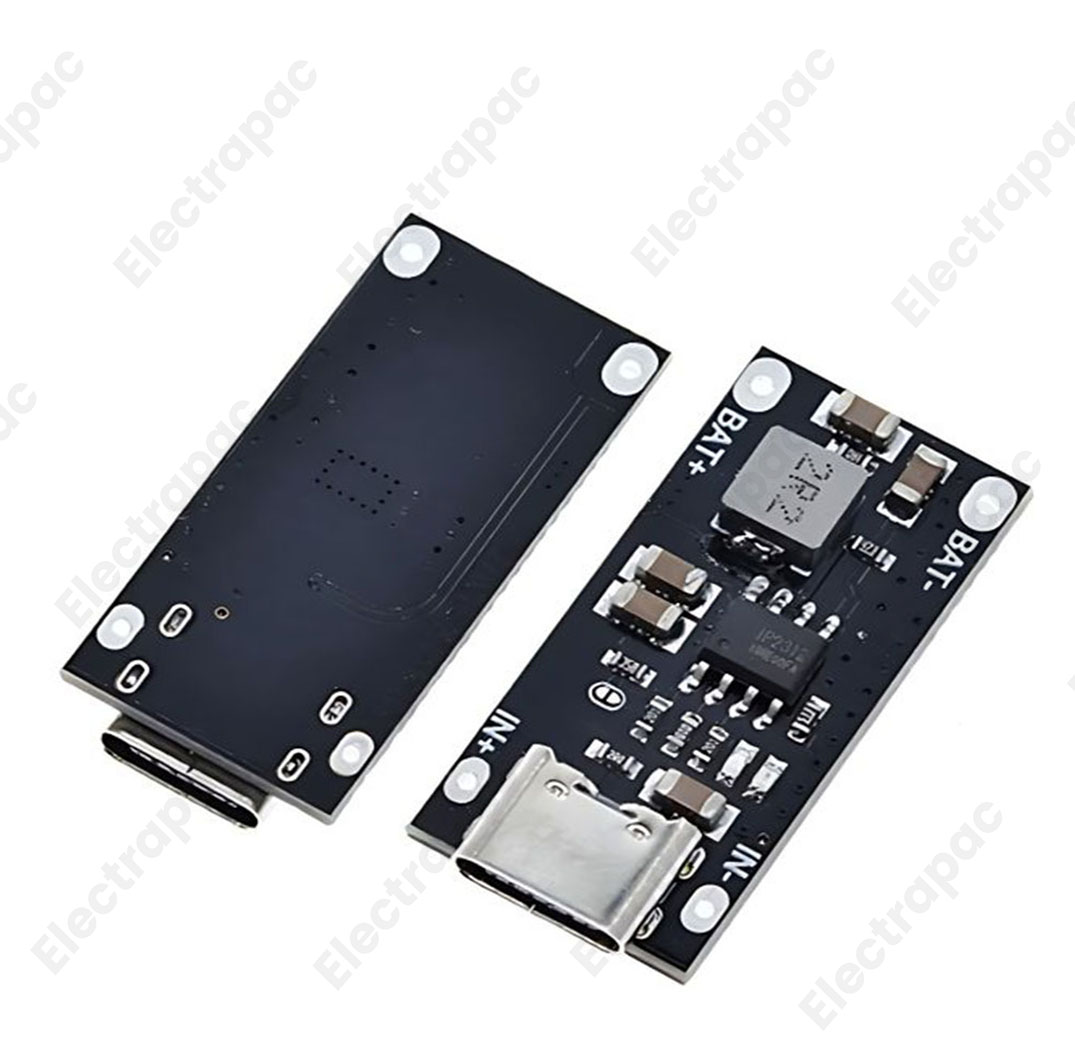

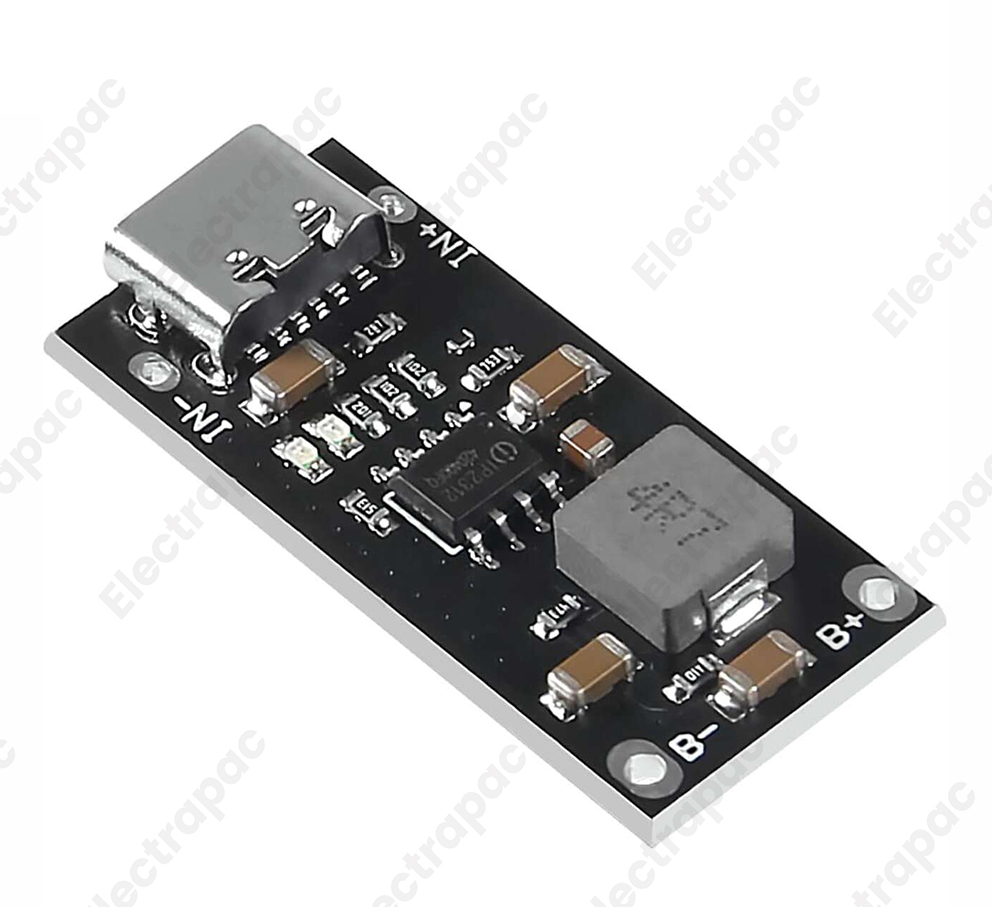

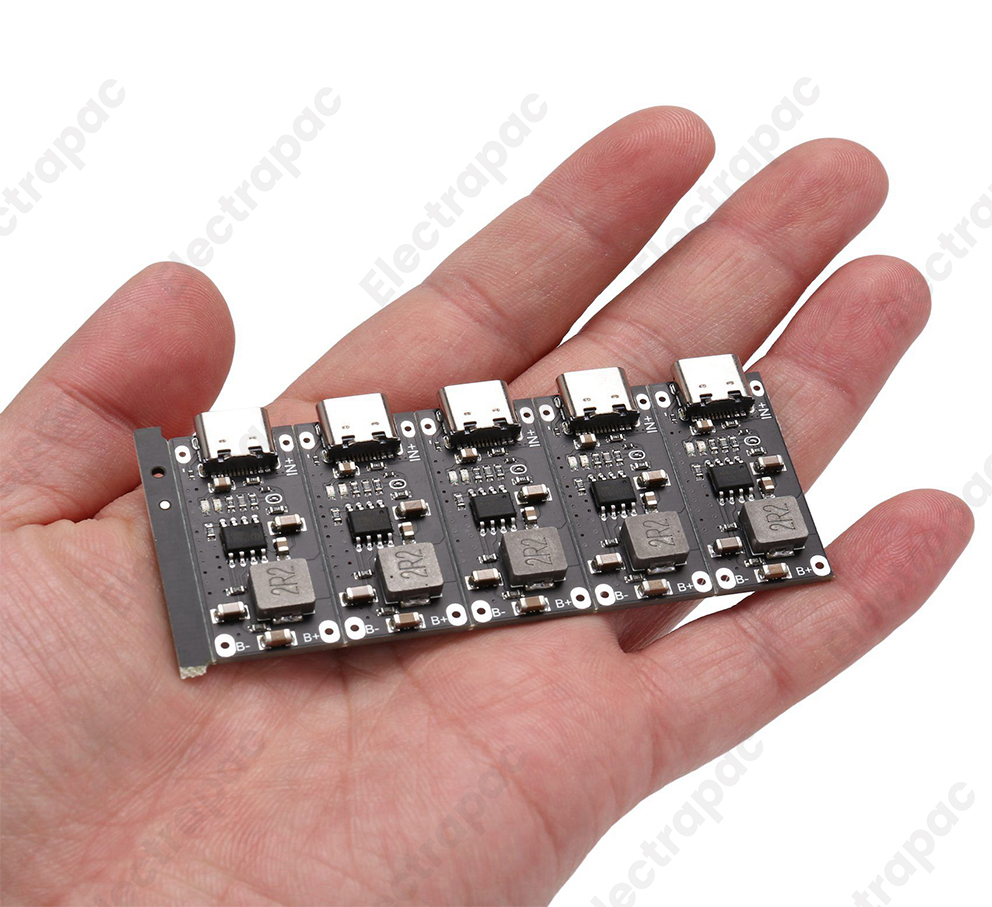

IP2312 Module 3A Type C USB C Input 3A High Current IP2312 Circuit 3A IP2312 Fast Charging Circuit 5V To 4.2V 4.35V TP4056 ETA4096 Module Adapters

Ratings 0

~~৳100~~

৳90

Brand : Non_Brand

Color Family

Black

Size Int:

Small

Stock Quantity:

15

Product description

Feature: – Master Chip: IP2312
Input voltage: 4.5 ~ 5.5V
Charging cut-off voltage: 4.2V/4.35V (the output voltage is available in two versions)
Charging current: 3A (the current can be changed by adjusting the resistance)
Indicator light: yes,
Red: working indicator.
Blue: full charge indicator.
Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data is for reference only)

IP2312 uses full CC/CV charging mode.

When the battery voltage is less than 3V, it enters the trickle charging mode and charges the battery with a charging current of 100mA.
When the battery voltage is higher than 3V, enter the DC charging mode to charge the battery with a constant charging current.
When the battery voltage is close to 4.2V and the charging current is less than 300mA, it enters into constant voltage charging mode.
After entering the constant voltage mode, the charging is stopped after every 4 minutes, and the battery voltage is detected to be higher than 4.15V.
If it is higher than 4.15V, the charging is stopped, otherwise, charging continues, then detection is performed after 4 minutes.
When the battery is fully charged, if it detects that the battery voltage is lower than 4.1V, it will turn on to charge the battery.
Instructions for adjusting charging current: – 3A default
Remove 2A resistor, replace with 135k 1A. Resistor

Specification:

3A polymer ternary lithium battery fast charging board (Not suitable for 3.2V lithium iron phosphate battery)
Main control chip: IP2312
Input voltage: 4.5 to 5.5V
Charging cut-off voltage: 4.2V/4.35V (the output voltage is available in 2 versions)
Charging current: 3A (current can be changed by adjusting the resistance)
Indicator light:
Red: working indicator
Blue: full indicator light.
Note: This product does not have the power indicator function, does not have the battery protection function,
Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data for reference only)
IP2312 adopts a complete CC/CV charging mode.
